LT3015IQ#PBF - Analog Devices

Description: Linear Technology LT3015IQ#PBF, LDO Regulator, 1.5A Adjustable, -29.3 → -1.2 V 5-Pin, D2PAK

Download LT3015IQ#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LT3015IQ#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

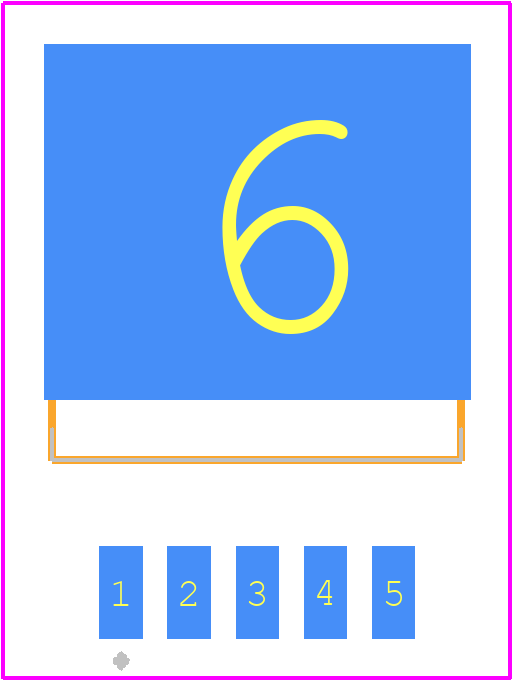

LT3015IQ#PBF - Analog Devices PCB footprint - Other - Other - LT3015IQ#PBF-1
click to zoom

LT3015IQ#PBF Details

  • Manufacturer Part Number:

    LT3015IQ#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, D2PAK-5

  • Pin Count:

    5

  • Manufacturer Package Code:

    05-08-1461

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.68 V

  • Dropout Voltage1-Nom:

    0.41 V

  • JESD-30 Code:

    R-PSSO-G5

  • JESD-609 Code:

    e3

  • Length:

    10.2235 mm

  • Load Regulation-Max(%):

    0.737%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.5 A

  • Output Voltage1-Max:

    29.5 V

  • Output Voltage1-Min:

    1.22 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE NEGATIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    4.877 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.702 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    8.89 mm

LT3015IQ#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT3015IQ#PBF is 36V, but it's recommended to operate within the specified input voltage range of 3.5V to 36V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the output voltage can be stabilized by adding a capacitor in parallel with the output resistor.
  • The LT3015IQ#PBF can maintain regulation with a minimum load current of 1mA. However, it's recommended to operate with a minimum load current of 10mA to ensure optimal performance and stability.
  • Yes, the LT3015IQ#PBF is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures, so it's essential to follow the recommended operating conditions and thermal management guidelines.
  • To protect the LT3015IQ#PBF from input voltage transients and surges, it's recommended to add a transient voltage suppressor (TVS) diode or a voltage clamp circuit at the input. Additionally, a fuse or a current-limiting resistor can be used to prevent overcurrent conditions.
