LT3015IQ-5#PBF - Analog Devices

LT3015IQ-5#PBF Details

• Manufacturer Part Number:

  LT3015IQ-5#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

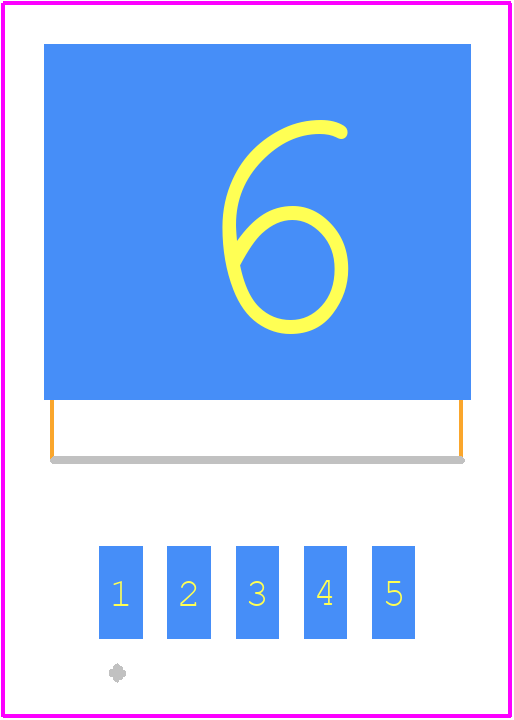

• Package Description:

  LEAD FREE, PLASTIC, D2PAK-5

• Pin Count:

  5

• Manufacturer Package Code:

  05-08-1461

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.68 V

• Dropout Voltage1-Nom:

  0.41 V

• Input Voltage Absolute-Max:

  33 V

• Input Voltage-Max:

  30 V

• Input Voltage-Min:

  5.5 V

• JESD-30 Code:

  R-PSSO-G5

• JESD-609 Code:

  e3

• Length:

  10.2235 mm

• Line Regulation-Max:

  0.02%

• Load Regulation-Max:

  0.026%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  5

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  1.5 A

• Output Voltage1-Max:

  5.1 V

• Output Voltage1-Min:

  4.9 V

• Output Voltage1-Nom:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HSOP

• Package Equivalence Code:

  SMSIP5H,.54,67TB

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG

• Peak Reflow Temperature (Cel):

  260

• Regulator Type:

  FIXED NEGATIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  4.877 mm

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.702 mm

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Tolerance-Max:

  2%

• Width:

  8.89 mm
