LT3023IMSE#PBF - Analog Devices

Description: LDO Voltage Regulators Dual 100mA, Low Dropout, Low Noise, Micropower Regulator

Download LT3023IMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

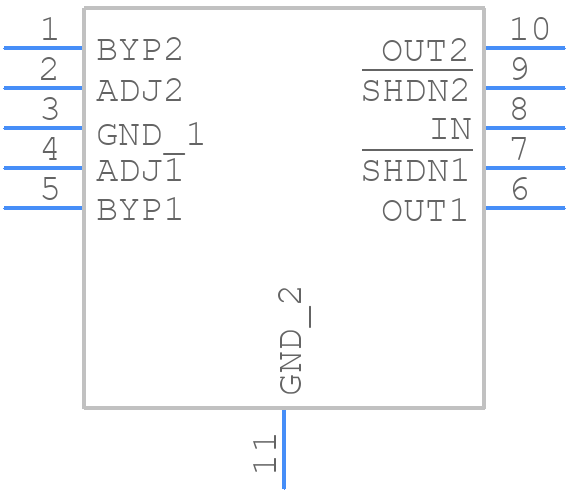

Symbol
LT3023IMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3023IMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 10-Lead Plastic MSOP Exposed Die Pad-1
click to zoom
3D Models
LT3023IMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 10-Lead Plastic MSOP Exposed Die Pad-1
click to zoom

LT3023IMSE#PBF Details

  • Manufacturer Part Number:

    LT3023IMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.45 V

  • Dropout Voltage1-Nom:

    0.3 V

  • Dropout Voltage2-Max:

    0.45 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Load Regulation-Max(%):

    2%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.1 A

  • Output Current2-Max:

    0.1 A

  • Output Voltage1-Max:

    20 V

  • Output Voltage1-Min:

    1.22 V

  • Output Voltage2-Max:

    20 V

  • Output Voltage2-Min:

    1.22 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE MULTIPLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3023IMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3023IMSE involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended compensation network, use a minimum output capacitance of 10uF, and ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device should be operated within its recommended operating conditions.
  • The maximum ambient temperature range for the LT3023IMSE is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and it's recommended to derate the output current and power dissipation accordingly.
  • Yes, the LT3023IMSE is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured using a high-reliability process. However, it's essential to follow the recommended operating conditions and design guidelines to ensure the device's reliability and performance.
  • The power dissipation of the LT3023IMSE can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. The device's thermal resistance (θJA) should also be considered when calculating the power dissipation.
