LT3024IFE#PBF - Analog Devices

Description: LDO Voltage Regulators 2x 100mA/500mA L Drop, L N, uP Reg

Download LT3024IFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

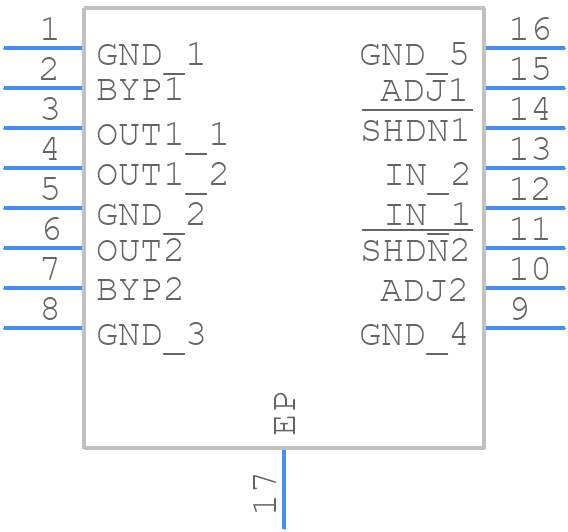

LT3024IFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3024IFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 16-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1663 Rev I)
click to zoom
3D Models
LT3024IFE#PBF - Analog Devices - 3D model - Small Outline Packages - FE Package 16-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1663 Rev I)
click to zoom

LT3024IFE#PBF Details

  • Manufacturer Part Number:

    LT3024IFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.40 MM, LEAD FREE, PLASTIC, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1663 (BB)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.45 V

  • Dropout Voltage1-Nom:

    0.3 V

  • Dropout Voltage2-Max:

    0.45 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Load Regulation-Max(%):

    2%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.1 A

  • Output Current2-Max:

    0.5 A

  • Output Voltage1-Max:

    20 V

  • Output Voltage1-Min:

    1.22 V

  • Output Voltage2-Max:

    20 V

  • Output Voltage2-Min:

    1.22 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE MULTIPLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LT3024IFE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3024 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended compensation network and output capacitor values. Additionally, the input and output capacitors should be placed close to the device, and the output capacitor should be a low-ESR type. Avoid using long output cables or traces, and ensure that the output is properly decoupled.
  • The maximum output current capability of the LT3024 is 500mA. However, the device can deliver higher currents for short durations. It's essential to consider the thermal limitations and power dissipation when operating the device at high output currents.
  • The LT3024 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal management and ensure that the device is properly heat-sinked to maintain a safe operating temperature.
  • To protect the LT3024 from input voltage transients and surges, it's recommended to use a TVS (Transient Voltage Suppressor) diode or a voltage clamp at the input. Additionally, a series input resistor can help to limit the input current and reduce the risk of damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3024IFE#PBF Overview

Use the download button to access the LT3024IFE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT302, or try a keyword search, such as Linear Regulator ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
