LT3028IFE#PBF - Analog Devices

Description: IC REG LINEAR POS ADJ 16TSSOP

Download LT3028IFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

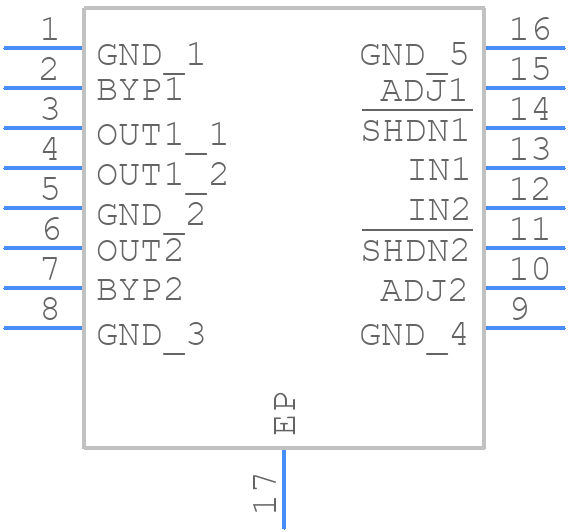

Symbol
LT3028IFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3028IFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP16+
click to zoom
3D Models
LT3028IFE#PBF - Analog Devices - 3D model - Small Outline Packages - TSSOP16+
click to zoom

LT3028IFE#PBF Details

  • Manufacturer Part Number:

    LT3028IFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.40 MM, PLASTIC, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1663 (BB)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.45 V

  • Dropout Voltage1-Nom:

    0.32 V

  • Dropout Voltage2-Max:

    0.47 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Load Regulation-Max(%):

    2%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Outputs:

    2

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.1 A

  • Output Current2-Max:

    0.5 A

  • Output Voltage1-Max:

    20 V

  • Output Voltage1-Min:

    1.22 V

  • Output Voltage2-Max:

    20 V

  • Output Voltage2-Min:

    1.22 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE MULTIPLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LT3028IFE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT3028IFE is 36V, but it's recommended to operate within the specified input voltage range of 3.5V to 36V for optimal performance.
  • To ensure stability in the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the input voltage should be well-regulated and free of noise.
  • The LT3028IFE can maintain regulation with a minimum load current of 1mA. However, it's recommended to operate with a minimum load current of 10mA to ensure optimal performance and stability.
  • The LT3028IFE is rated for operation up to 125°C, but it's essential to consider the thermal derating and ensure that the device is properly heat-sinked to prevent overheating. Additionally, the device's performance may degrade at high temperatures, so it's crucial to consult the datasheet and application notes for guidance.
  • To protect the LT3028IFE from input voltage transients and surges, it's recommended to use a suitable input filter, such as a TVS diode or a transient voltage suppressor, in conjunction with a low-pass filter or a ferrite bead. Additionally, the input capacitor should be selected to ensure that it can handle the maximum input voltage and any potential voltage spikes.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3028IFE#PBF Overview

Use the download button to access the LT3028IFE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT302, or try a keyword search, such as Linear Regulator ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
