LT3030EFE#TRPBF - Analog Devices

Description: LDO Voltage Regulators Dual 750mA/250mA Low Dropout, Low Noise, Micropower Linear Regulator

Download LT3030EFE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

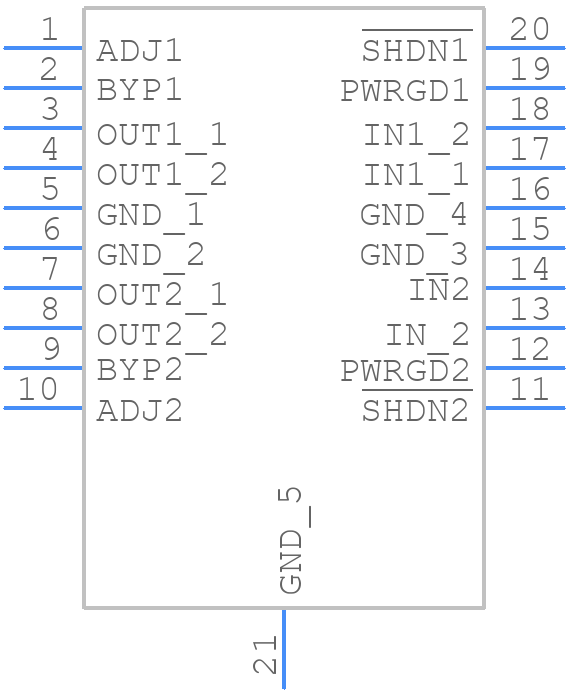

LT3030EFE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3030EFE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20-Lead Plastic TSSOP-ren1
click to zoom
3D Models
LT3030EFE#TRPBF - Analog Devices - 3D model - Small Outline Packages - 20-Lead Plastic TSSOP-ren1
click to zoom

LT3030EFE#TRPBF Details

  • Manufacturer Part Number:

    LT3030EFE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1663 (CB)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.48 V

  • Dropout Voltage1-Nom:

    0.3 V

  • Dropout Voltage2-Max:

    0.48 V

  • Input-Output Voltage Differential-Max:

    18.78 V

  • Input-Output Voltage Differential-Min:

    0.78 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Line Regulation-Max (%/V):

    0.023

  • Load Regulation-Max(%):

    0.833%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Outputs:

    2

  • Number of Terminals:

    20

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.75 A

  • Output Current2-Max:

    0.25 A

  • Output Voltage1-Max:

    19.5 V

  • Output Voltage1-Min:

    1.22 V

  • Output Voltage2-Max:

    19.5 V

  • Output Voltage2-Min:

    1.22 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE MULTIPLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LT3030EFE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device on a solid copper plane, using thermal vias to connect the plane to the bottom layer, and keeping the plane as close to the device as possible. Additionally, it's recommended to use a 4-layer board with a thermal layer to dissipate heat efficiently.
  • To ensure stability in the output voltage, it's essential to follow the recommended capacitor selection and placement guidelines in the datasheet. Additionally, the output capacitor should be placed close to the output pin, and the input capacitor should be placed close to the input pin. It's also recommended to use a low-ESR output capacitor and to avoid using ceramic capacitors with high ESL.
  • The maximum input voltage that can be applied to the LT3030EFE is 15V. Exceeding this voltage can cause damage to the device. It's essential to ensure that the input voltage is within the recommended operating range to ensure reliable operation.
  • The output voltage ripple of the LT3030EFE can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where Iout is the output current, ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency. The output voltage ripple should be minimized to ensure reliable operation.
  • The recommended input capacitor value for the LT3030EFE is 10uF to 22uF, and the recommended type is a low-ESR ceramic or film capacitor. The input capacitor should be placed close to the input pin and should be rated for the maximum input voltage.
