LT3040IMSE#PBF - Analog Devices

Description: LDO Voltage Regulators 1.8V to 20V, 200mA IOUT, Ultralow

Download LT3040IMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

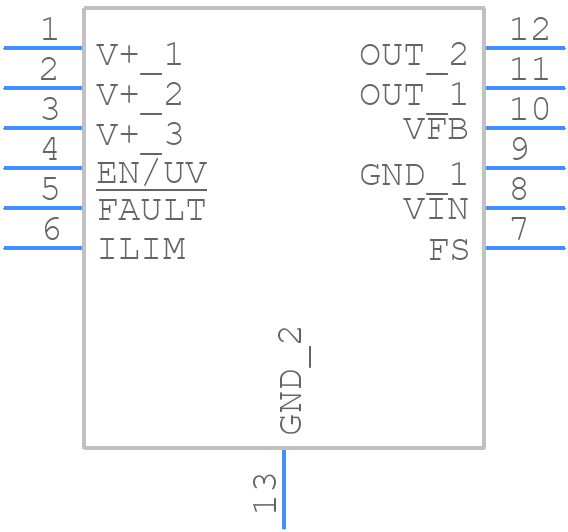

LT3040IMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3040IMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 12-Lead Plastic MSOP Exposed Die Pad
click to zoom
3D Models
LT3040IMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 12-Lead Plastic MSOP Exposed Die Pad
click to zoom

LT3040IMSE#PBF Details

  • Manufacturer Part Number:

    LT3040IMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-11-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    15 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.002 mA

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Width:

    3 mm

LT3040IMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3040IMSE involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the power supply traces away from the analog signals.
  • To ensure the stability of the LT3040IMSE output voltage, it's essential to choose the correct output capacitor value and type. A minimum output capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance) to prevent oscillations. Additionally, the output voltage should be decoupled from the input voltage using a capacitor and a resistor in series.
  • The maximum input voltage that the LT3040IMSE can handle is 36V. Exceeding this voltage can cause damage to the device. It's essential to ensure that the input voltage is within the recommended range to maintain the device's reliability and performance.
  • The LT3040IMSE is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the device's thermal characteristics and ensure that it is properly heat-sinked to maintain its performance and reliability in high-temperature environments.
  • To troubleshoot issues with the LT3040IMSE output voltage, start by checking the input voltage and ensuring it's within the recommended range. Then, verify that the output capacitor is properly connected and has the correct value. Check for any signs of oscillations or instability, and ensure that the device is properly heat-sinked. If the issue persists, consult the datasheet and application notes for further guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3040IMSE#PBF Overview

Use the download button to access the LT3040IMSE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT304, or try a keyword search, such as Digital to Analog Converters
