LT3041ADE#PBF - Analog Devices

Description: 20 V, 1 A, Ultra-Low Noise, Ultra-High PSRR Linear Regulator with VIOC Control

Download LT3041ADE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

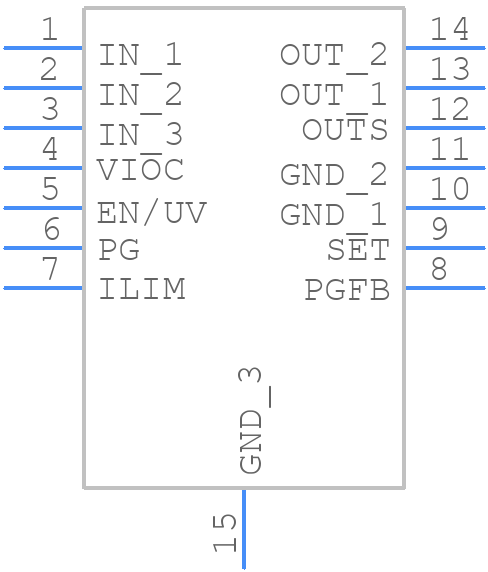

LT3041ADE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3041ADE#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 14-Lead, 4 mm × 3 mm, Plastic DFN (05-08-1708) Dimensions shown in millimeters
click to zoom
3D Models
LT3041ADE#PBF - Analog Devices - 3D model - Small Outline No-lead - 14-Lead, 4 mm × 3 mm, Plastic DFN (05-08-1708) Dimensions shown in millimeters
click to zoom

LT3041ADE#PBF Details

  • Manufacturer Part Number:

    LT3041ADE#PBF

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LFCSP:LEADFRM CHIP SCALE

  • Package Description:

    DFN-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    LFCSP:LEADFRM CHIP SCALE

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2022-11-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.48 V

  • Dropout Voltage1-Nom:

    0.31 V

  • JESD-30 Code:

    R-PDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Load Regulation-Max(%):

    0.4%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    15 V

  • Output Voltage1-Min:

    0.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SSOX14,.14,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3041ADE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3041 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended PCB layout, use a sufficient output capacitor, and add a small ceramic capacitor (e.g., 10nF) between the VOUT and GND pins. Additionally, ensure that the input voltage is within the recommended range and the output current is within the specified limits.
  • The LT3041 can handle input voltages up to 15V, but it's recommended to operate within the specified input voltage range (2.3V to 15V) for optimal performance and to prevent damage to the device.
  • The LT3041 is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's essential to ensure proper thermal management and consider the device's thermal characteristics when designing for high-temperature applications.
  • The output voltage of the LT3041 can be calculated using the formula: VOUT = (R1/R2) * (VIN - VREF), where R1 and R2 are the resistors in the feedback network, VIN is the input voltage, and VREF is the internal reference voltage (1.2V).
