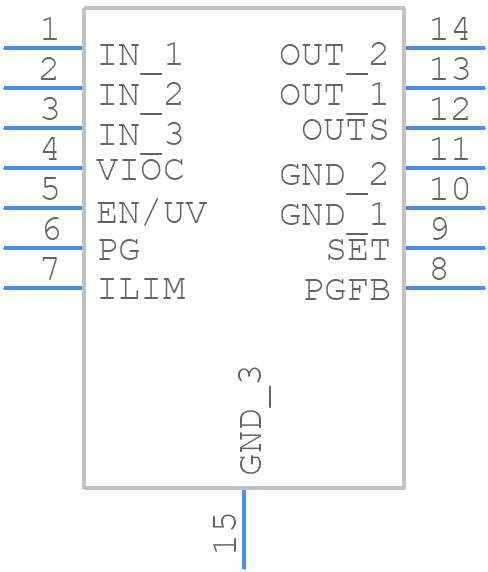

LT3041ADE#TRPBF - Analog Devices

LT3041ADE#TRPBF Details

• Manufacturer Part Number:

  LT3041ADE#TRPBF

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  LFCSP:LEADFRM CHIP SCALE

• Package Description:

  DFN-14

• Pin Count:

  14

• Manufacturer Package Code:

  LFCSP:LEADFRM CHIP SCALE

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2022-11-03

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Adjustability:

  ADJUSTABLE

• Dropout Voltage1-Max:

  0.48 V

• Dropout Voltage1-Nom:

  0.31 V

• JESD-30 Code:

  R-PDSO-N14

• JESD-609 Code:

  e3

• Length:

  4 mm

• Load Regulation-Max(%):

  0.4%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  14

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  1 A

• Output Voltage1-Max:

  15 V

• Output Voltage1-Min:

  0.2 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SSOX14,.14,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Regulator Type:

  ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  0.8 mm

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm
