LT3042HDD#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT3042HDD#PBF - LDO Voltage Regulator, Adjustable, 1.8V to 20V in, 350mV drop, 0V to 15V/0.2A out, DFN-10

Download LT3042HDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

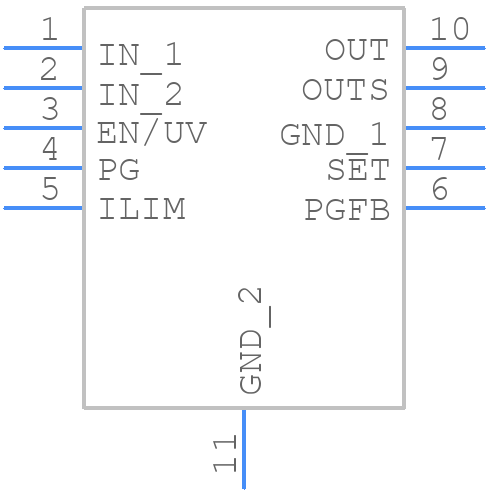

LT3042HDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3042HDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-LEAD (3mm s 3mm) PLASTIC DFN*-*-
click to zoom
3D Models
LT3042HDD#PBF - Analog Devices - 3D model - Small Outline No-lead - 10-LEAD (3mm s 3mm) PLASTIC DFN*-*-
click to zoom

LT3042HDD#PBF Details

  • Manufacturer Part Number:

    LT3042HDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.3 V

  • Dropout Voltage1-Nom:

    0.22 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Load Regulation-Max(%):

    0.003%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3042HDD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3042HDD involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended PCB layout, use a sufficient output capacitor (at least 10uF), and add a small ceramic capacitor (around 10nF) between the VOUT and GND pins. Additionally, ensure that the input voltage is within the recommended range.
  • The LT3042HDD can handle input voltages up to 36V, but it's recommended to keep the input voltage below 30V to ensure optimal performance and reliability.
  • The LT3042HDD is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure that the device is properly heatsinked and follow the recommended thermal design guidelines.
  • The output voltage of the LT3042HDD can be adjusted by using a resistive divider network between the VOUT and ADJ pins. The output voltage is determined by the ratio of the resistors and the internal reference voltage (1.2V).
