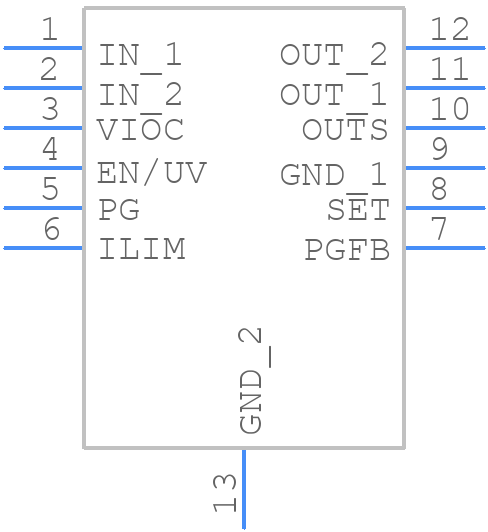

LT3045EMSE-1#TRPBF - Analog Devices

LT3045EMSE-1#TRPBF Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance?
  A good PCB layout for the LT3045EMSE-1#TRPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a Kelvin connection for the output voltage sense pins to reduce noise and improve accuracy.
• How do I ensure stability and prevent oscillations in my design?
  To ensure stability and prevent oscillations, it's essential to follow the recommended compensation network configuration and component values provided in the datasheet. Additionally, make sure to use a sufficient output capacitor with a low ESR and a high-quality input capacitor with a low ESL.
• What is the maximum output current capability of the device?
  The maximum output current capability of the LT3045EMSE-1#TRPBF is 5A. However, the device can deliver higher currents for short periods of time. It's essential to consider the thermal limitations and ensure that the device is properly heatsinked to prevent overheating.
• How do I program the output voltage of the device?
  The output voltage of the LT3045EMSE-1#TRPBF can be programmed using an external resistor divider network connected to the VOUT pin. The datasheet provides a formula to calculate the required resistor values for a specific output voltage.
• What is the purpose of the EN pin, and how do I use it?
  The EN (enable) pin is used to turn the device on or off. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. This pin can be used to implement power sequencing or to turn off the device when not in use to reduce power consumption.
