LT3045MPDD#PBF - Analog Devices

Description: 20V, 500mA, Ultralow Noise, Ultrahigh PSRR Linear Regulator

Download LT3045MPDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

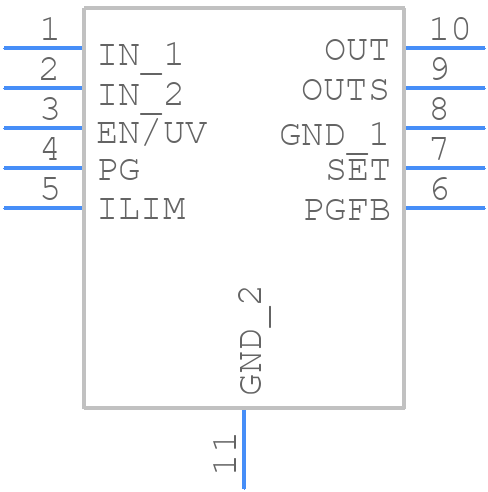

LT3045MPDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3045MPDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 10-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1699 Rev C) H 0.8mm
click to zoom
3D Models
LT3045MPDD#PBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 10-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1699 Rev C) H 0.8mm
click to zoom

LT3045MPDD#PBF Details

  • Manufacturer Part Number:

    LT3045MPDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-10-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.45 V

  • Dropout Voltage1-Nom:

    0.22 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Load Regulation-Max(%):

    0.0033%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -55 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3045MPDD#PBF Frequently Asked Questions (FAQs)

  • The maximum output current of the LT3045 is 500mA. However, it's recommended to limit the output current to 400mA for optimal performance and to prevent overheating.
  • To optimize the layout for the LT3045, keep the input and output capacitors close to the device, use a solid ground plane, and minimize the length of the input and output traces. Also, ensure that the thermal pad is connected to a solid ground plane to improve heat dissipation.
  • The recommended input capacitor value for the LT3045 is 10uF to 22uF, with a voltage rating of at least 2x the input voltage. A higher value capacitor can be used for improved ripple rejection and noise reduction.
  • The LT3045 is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to prevent overheating and ensure reliable operation.
  • To ensure stability, use a minimum output capacitor value of 10uF, and ensure that the output capacitor's ESR is less than 1 ohm. Also, avoid using capacitors with high ESL (Equivalent Series Inductance) values.
