LT3046ATC+ - Analog Devices

Description: Ultra-Low RMS Noise: 0.8μVRMS (10Hz to 100kHz)  Ultra-Low Noise: 2.2nV/√Hz at 10kHz  Ultra-Low 1/f Noise: 2.5μVP-P (0.1Hz to 10Hz)  Ultra-High PSRR: 82dB at 1MHz  Output Current: 200mA  Wide Input-Voltage Range: 2.2V to 20V  Single Capacitor Improves Noise and PSRR  SET Pin Current: 100μA, ±0.5% Initial Accuracy  Single Resistor Programs Output Voltage  Programmable Current Limit  Low Dropout Voltage: 300mV  Output-Voltage Range: 0.2V to 19V  Programmable Power Good  Fast Start-Up

Download LT3046ATC+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

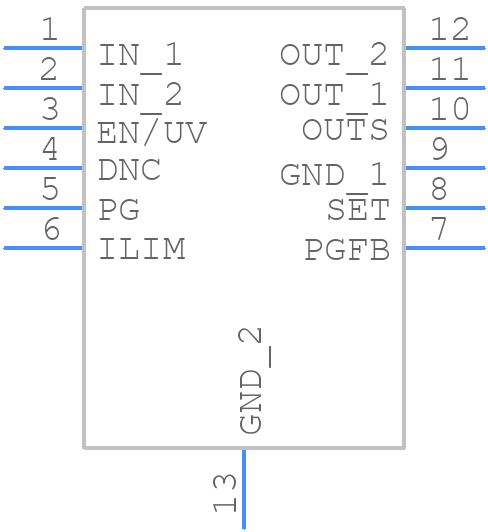

LT3046ATC+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3046ATC+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 12-Lead Plastic DFN (3mm x 3mm)*
click to zoom
3D Models
LT3046ATC+ - Analog Devices - 3D model - Small Outline No-lead - 12-Lead Plastic DFN (3mm x 3mm)*
click to zoom

LT3046ATC+ Details

  • Manufacturer Part Number:

    LT3046ATC+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.47 V

  • Dropout Voltage1-Nom:

    0.3 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Load Regulation-Max(%):

    0.35%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    19 V

  • Output Voltage1-Min:

    0.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,18

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3046ATC+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3046ATC+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a Kelvin connection for the output voltage sense pins to reduce noise and improve accuracy.
  • To ensure stability, make sure to follow the recommended compensation network configuration, use a minimum output capacitance of 10uF, and keep the output voltage sense pins close to the output capacitors. Additionally, avoid using long output traces and minimize the inductance of the output capacitors.
  • The LT3046ATC+ can handle input voltages up to 36V, but it's recommended to operate within the specified input voltage range of 2.9V to 32V for optimal performance and reliability.
  • The LT3046ATC+ is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliability and prevent thermal shutdown.
  • The output voltage of the LT3046ATC+ can be programmed using an external resistor divider network connected to the VOUT pin. The output voltage is determined by the ratio of the resistors and the internal reference voltage.
