A good PCB layout for the LT3048IDC#TRPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability and prevent oscillations, it's essential to follow the recommended capacitor values and types, keep the input and output capacitors close to the device, and avoid using capacitors with high ESR values. Additionally, adding a small ceramic capacitor (e.g., 10nF) between the VOUT and GND pins can help improve stability.
The maximum input voltage that can be applied to the LT3048IDC#TRPBF is 15V, but it's recommended to operate the device within the specified input voltage range (3.1V to 15V) to ensure optimal performance and reliability.
The LT3048IDC#TRPBF is rated for operation up to 125°C, but it's essential to consider the device's thermal characteristics and ensure that the junction temperature (TJ) does not exceed 150°C. Proper thermal design, including heat sinking and airflow, is crucial for high-temperature operation.
The output voltage accuracy and tolerance can be calculated using the formula: VOUT = VREF x (1 + (R1/R2)), where VREF is the internal reference voltage (2.048V), and R1 and R2 are the resistors used to set the output voltage. The tolerance of the output voltage is determined by the tolerance of the resistors and the internal reference voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LT3048IDC#TRPBF Overview

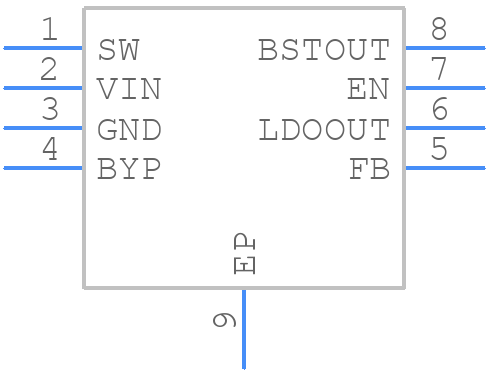

Use the download button to access the LT3048IDC#TRPBF schematic symbol, PCB footprint, and 3D model.
