LT3050MPMSE#PBF - Analog Devices

Description: LDO Voltage Regulators 100mA Protected Antenna Supply LDO

Download LT3050MPMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

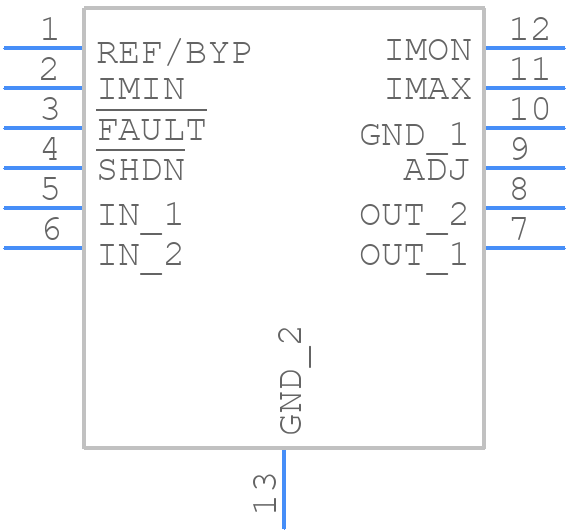

LT3050MPMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3050MPMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 12-Lead Plastic MSOP
click to zoom
3D Models
LT3050MPMSE#PBF - Analog Devices - 3D model - Small Outline Packages - 12-Lead Plastic MSOP
click to zoom

LT3050MPMSE#PBF Details

  • Manufacturer Part Number:

    LT3050MPMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.55 V

  • Dropout Voltage1-Nom:

    0.34 V

  • Input-Output Voltage Differential-Max:

    45 V

  • Input-Output Voltage Differential-Min:

    2.2 V

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Line Regulation-Max (%/V):

    0.011

  • Load Regulation-Max(%):

    0.6%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -55 °C

  • Output Current1-Max:

    0.1 A

  • Output Voltage1-Max:

    44.5 V

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3050MPMSE#PBF Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the LT3050 demo board manual (DC2026A) which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The output capacitor selection depends on the output voltage, output current, and desired transient response. A general guideline is to use a low-ESR capacitor with a value between 10uF to 100uF. The datasheet provides a detailed explanation of the output capacitor selection process.
  • The maximum input voltage for the LT3050MPMSE#PBF is 36V, but it's recommended to operate the device within the specified input voltage range of 3.5V to 30V for optimal performance and reliability.
  • The LT3050MPMSE#PBF is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and ensure proper thermal management to prevent overheating.
  • Analog Devices provides a troubleshooting guide in the LT3050 datasheet, which includes a step-by-step process to identify and resolve common issues. Additionally, the device's internal protection features, such as overcurrent protection and thermal shutdown, can help prevent damage and aid in troubleshooting.
