LT3055EDE#PBF - Analog Devices

Description: LDO Voltage Regulators 500mA, Linear Regulator with Precision Current Limit and Diagnostics

Download LT3055EDE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

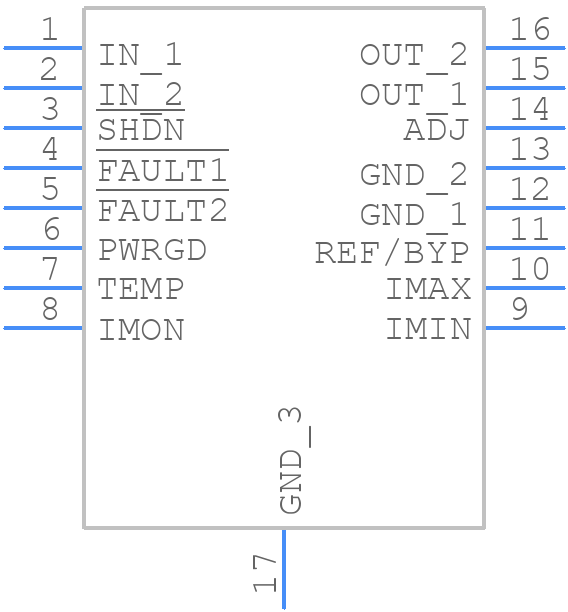

LT3055EDE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3055EDE#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DE Package 16-Lead Plastic DFN (4mm × 3mm)
click to zoom
3D Models
LT3055EDE#PBF - Analog Devices - 3D model - Small Outline No-lead - DE Package 16-Lead Plastic DFN (4mm × 3mm)
click to zoom

LT3055EDE#PBF Details

  • Manufacturer Part Number:

    LT3055EDE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1732

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    R-PDSO-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    125 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    40 V

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC16,.12,18

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3055EDE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3055EDE involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR and is properly decoupled from the output voltage. Additionally, avoid using capacitors with high ESL values.
  • The LT3055EDE can operate in ambient temperatures up to 125°C, but the junction temperature should not exceed 150°C. Proper thermal design and heat sinking may be required to ensure reliable operation.
  • Yes, the LT3055EDE is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured using a qualified process. However, additional testing and validation may be required for specific applications.
  • To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check for proper component values, PCB layout, and thermal design. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for guidance on specific issues.
