LT3060EDC#PBF - Analog Devices

Description: LDO Voltage Regulators LT3060 - 45V VIN, Micropower, Low Noise, 100mA Low Dropout, Linear Regulator

Download LT3060EDC#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

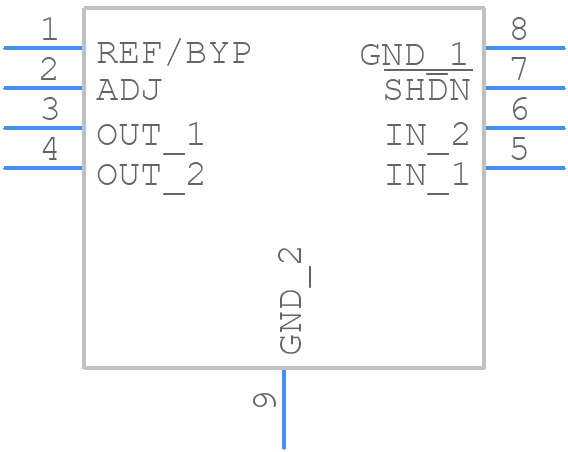

LT3060EDC#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3060EDC#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DC Package 8-Lead Plastic DFN (2mm ×2mm)
click to zoom
3D Models
LT3060EDC#PBF - Analog Devices - 3D model - Small Outline No-lead - DC Package 8-Lead Plastic DFN (2mm ×2mm)
click to zoom

LT3060EDC#PBF Details

  • Manufacturer Part Number:

    LT3060EDC#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    2 X 2 MM, 0.75 MM HEIGHT, LEAD FREE, PLASTIC, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1719

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.51 V

  • Dropout Voltage1-Nom:

    0.3 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Line Regulation-Max (%/V):

    0.013

  • Load Regulation-Max(%):

    0.66%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.1 A

  • Output Voltage1-Max:

    44.5 V

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,18

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LT3060EDC#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3060 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR and is properly decoupled from the input capacitor. Additionally, avoid using capacitors with high ESL and ensure that the feedback network is properly compensated.
  • The LT3060 can handle input voltages up to 36V, but it's recommended to operate it within the specified input voltage range of 3.6V to 32V for optimal performance and reliability.
  • The LT3060 is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the device's performance and ensure proper thermal management to prevent overheating.
  • To troubleshoot issues, start by verifying the input voltage and current, and checking for proper output voltage regulation. Use an oscilloscope to check for oscillations or noise on the output, and ensure that the feedback network is properly compensated. Also, check for thermal issues and ensure that the device is properly soldered and mounted.
