LT3060HTS8#TRMPBF - Analog Devices

Description: LDO Voltage Regulators 45V Vin, 100mA, Low Noise, Low Dropout, Micropower Linear Regulator

Download LT3060HTS8#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

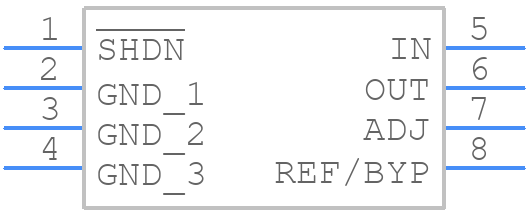

Symbol
LT3060HTS8#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3060HTS8#TRMPBF - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - TS8 Package 8-Lead Plastic TSOT-23
click to zoom
3D Models
LT3060HTS8#TRMPBF - Analog Devices - 3D model - SOT23 (8-Pin) - TS8 Package 8-Lead Plastic TSOT-23
click to zoom

LT3060HTS8#TRMPBF Details

  • Manufacturer Part Number:

    LT3060HTS8#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1637

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.51 V

  • Dropout Voltage1-Nom:

    0.3 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Line Regulation-Max (%/V):

    0.66

  • Load Regulation-Max(%):

    1.5%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.1 A

  • Output Voltage1-Max:

    44.5 V

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

LT3060HTS8#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3060 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance.
  • To ensure stability, it's essential to follow the recommended compensation network, use a low-ESR output capacitor, and avoid high-impedance input sources. Additionally, ensure that the input and output capacitors are properly decoupled from the device.
  • The LT3060 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. Consult the datasheet for thermal resistance and power dissipation guidelines.
  • Yes, the LT3060 is available in a variety of grades, including the 'HT' grade, which is designed for high-reliability applications. However, it's essential to consult with Analog Devices Inc. and follow their specific guidelines for high-reliability applications.
  • To troubleshoot issues with the LT3060, start by verifying the input voltage, output voltage, and current. Check the PCB layout, component values, and soldering quality. Use an oscilloscope to inspect the output voltage and current waveforms, and consult the datasheet and application notes for guidance.
