LT3061HMS8E#PBF - Analog Devices

Description: LDO Voltage Regulators 45v Vin, Micropower, Low Noise 100mA LDO with Output Discharge

Download LT3061HMS8E#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

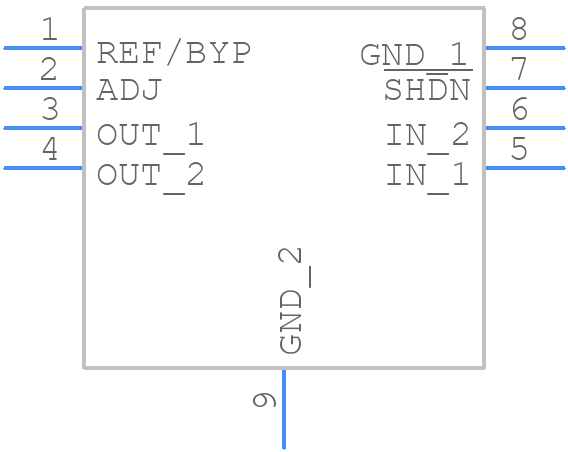

LT3061HMS8E#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3061HMS8E#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad_1
click to zoom
3D Models
LT3061HMS8E#PBF - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad_1
click to zoom

LT3061HMS8E#PBF Details

  • Manufacturer Part Number:

    LT3061HMS8E#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.43 V

  • Dropout Voltage1-Nom:

    0.25 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.007

  • Load Regulation-Max:

    0.6%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.1 A

  • Output Voltage1-Max:

    19 V

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3061HMS8E#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3061HMS8E involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low ESR (Equivalent Series Resistance) and is properly decoupled from the output voltage. A minimum output capacitance of 10uF is recommended.
  • The maximum ambient temperature range for the LT3061HMS8E is -40°C to 125°C. However, the device can operate up to 150°C with derating.
  • Yes, the LT3061HMS8E is available in a variety of grades, including the 'H' grade which is suitable for high-reliability and aerospace applications. The 'H' grade devices are screened to tighter specifications and are guaranteed to meet the datasheet specifications over the full military temperature range.
  • The power dissipation of the LT3061HMS8E can be calculated using the following formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current.
