LT3061MPMS8E#TRPBF - Analog Devices

Description: LDO Regulator Pos 0.6V to 19V 0.1A Automotive 8-Pin MSOP EP T/R

Download LT3061MPMS8E#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

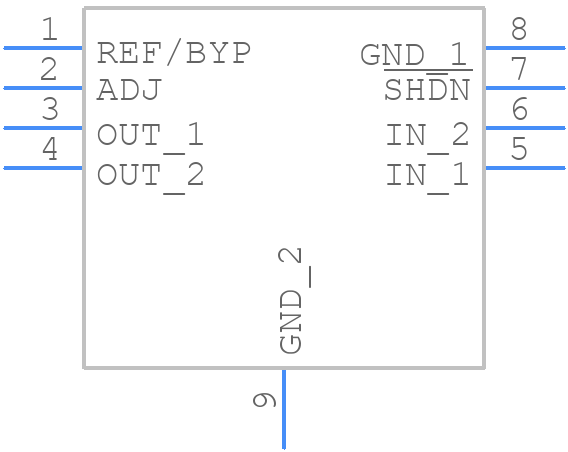

LT3061MPMS8E#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3061MPMS8E#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LT3061MPMS8E#TRPBF - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LT3061MPMS8E#TRPBF Details

  • Manufacturer Part Number:

    LT3061MPMS8E#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.43 V

  • Dropout Voltage1-Nom:

    0.25 V

  • Input-Output Voltage Differential-Max:

    44.4 V

  • Input-Output Voltage Differential-Min:

    1.5 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.02331

  • Load Regulation-Max(%):

    0.5625%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -55 °C

  • Output Current1-Max:

    0.1 A

  • Output Voltage1-Max:

    19 V

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3061MPMS8E#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3061MPMS8E#TRPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network and component values, and ensure that the output capacitor is properly sized and placed. Also, avoid using long, thin traces and minimize the distance between the output capacitor and the load. Additionally, consider adding a small series resistor (e.g., 1Ω) between the output capacitor and the load to dampen oscillations.
  • The maximum output current of the LT3061MPMS8E#TRPBF is 1.5A, but this can be limited by the thermal performance of the device and the PCB. Make sure to check the thermal calculations and ensure that the device is properly heatsinked to prevent overheating.
  • The LT3061MPMS8E#TRPBF is rated for operation up to 125°C, but the device's performance and reliability may be affected at high temperatures. Make sure to check the datasheet for temperature-related specifications and consider using thermal management techniques such as heatsinking or airflow to keep the device within its recommended operating temperature range.
  • To troubleshoot issues with the LT3061MPMS8E#TRPBF, start by checking the input voltage, output voltage, and output current using an oscilloscope or a multimeter. Verify that the device is properly configured and that the compensation network is correct. Check for signs of overheating, such as excessive temperature or thermal shutdown. Also, ensure that the PCB layout is correct and that there are no noise or EMI issues affecting the device's performance.
