LT3062IDCB-3.3#TRMPBF - Analog Devices

Description: LDO Voltage Regulators 45V Vin, Micropower, Low Noise, 200mA LDO with Output Discharge

Download LT3062IDCB-3.3#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

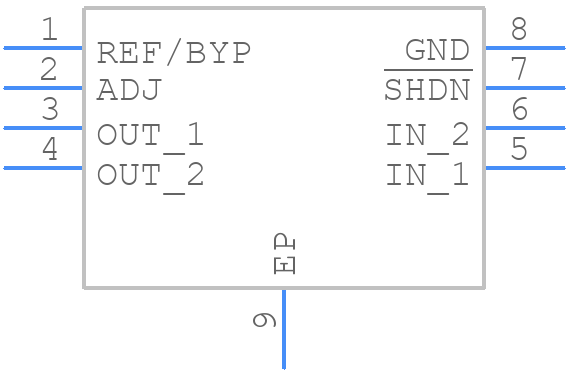

Symbol
LT3062IDCB-3.3#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3062IDCB-3.3#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - LT3062IDCB-3.3#TRMPBF
click to zoom
3D Models
LT3062IDCB-3.3#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - LT3062IDCB-3.3#TRMPBF
click to zoom

LT3062IDCB-3.3#TRMPBF Details

  • Manufacturer Part Number:

    LT3062IDCB-3.3#TRMPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.53 V

  • Dropout Voltage1-Nom:

    0.3 V

  • Input Voltage Absolute-Max:

    50 V

  • Input Voltage-Max:

    45 V

  • Input Voltage-Min:

    3.9 V

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max:

    0.022%

  • Load Regulation-Max:

    0.028%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    3.366 V

  • Output Voltage1-Min:

    3.234 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,18

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    2 mm

LT3062IDCB-3.3#TRMPBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LT3062IDCB-3.3 can be found in the LT3062 demo circuit DC1553A, which is available on the Analog Devices website. This layout provides a good starting point for designing a PCB that minimizes noise and ensures optimal performance.
  • The output capacitor selection depends on the output voltage, output current, and desired transient response. A general guideline is to use a low-ESR ceramic capacitor with a value between 10uF to 22uF. The datasheet provides more detailed guidance on output capacitor selection.
  • The maximum input voltage for the LT3062IDCB-3.3 is 15V. Exceeding this voltage can cause damage to the device. It's essential to ensure that the input voltage is within the recommended range to ensure reliable operation.
  • The LT3062IDCB-3.3 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal management and ensure that the device is operated within its recommended temperature range.
  • To ensure stability, follow the recommended PCB layout, use a low-ESR output capacitor, and ensure that the input and output capacitors are properly decoupled. Additionally, the datasheet provides guidance on stability analysis and compensation techniques.
