LT3063IDCB-5#TRMPBF - Analog Devices

Description: LDO Voltage Regulators 45V VIN, Micropower, Low Noise, 200mA LDO with Output Discharge

Download LT3063IDCB-5#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

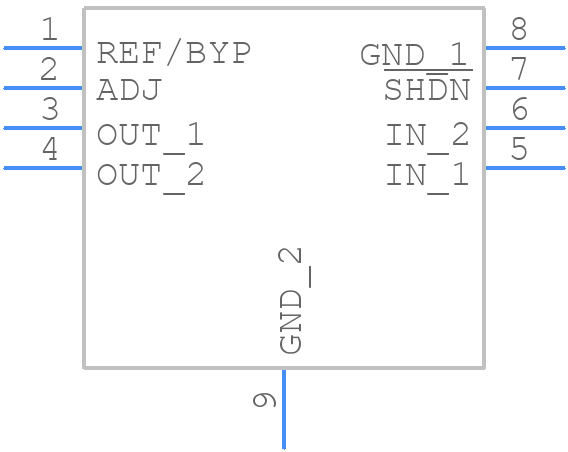

LT3063IDCB-5#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3063IDCB-5#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DCB Package 8-Lead Plastic DFN (2mm × 3mm)
click to zoom
3D Models
LT3063IDCB-5#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - DCB Package 8-Lead Plastic DFN (2mm × 3mm)
click to zoom

LT3063IDCB-5#TRMPBF Details

  • Manufacturer Part Number:

    LT3063IDCB-5#TRMPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.53 V

  • Dropout Voltage1-Nom:

    0.3 V

  • Input Voltage Absolute-Max:

    50 V

  • Input Voltage-Max:

    45 V

  • Input Voltage-Min:

    5.6 V

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    3 mm

  • Line Regulation-Max:

    0.033%

  • Load Regulation-Max:

    0.039%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.9 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,18

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2%

  • Width:

    2 mm

LT3063IDCB-5#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3063IDCB-5#TRMPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability in your design, make sure to follow the recommended compensation network, use a minimum output capacitance of 10uF, and avoid using capacitors with high ESR. Also, ensure that the input voltage is within the recommended range and the output current is within the specified limits.
  • The maximum ambient temperature for the LT3063IDCB-5#TRMPBF is 125°C. However, the device can operate up to 150°C with derating. It's essential to ensure that the device is operated within the recommended temperature range to ensure reliability and performance.
  • Yes, the LT3063IDCB-5#TRMPBF is suitable for high-reliability applications. It's manufactured using a high-reliability process, and it's qualified to meet the requirements of various industries, including automotive, industrial, and medical. However, it's essential to follow the recommended design and layout guidelines to ensure the device operates within the specified limits.
  • To troubleshoot issues with your design, start by verifying that the input voltage is within the recommended range and the output current is within the specified limits. Check the PCB layout for any noise or EMI issues, and ensure that the compensation network is properly implemented. Use an oscilloscope to measure the output voltage and current, and consult the datasheet and application notes for guidance.
