LT3065IDD#PBF - Analog Devices

Description: LDO Voltage Regulators 45V VIN, 500mA Low Noise, Linear Regulator with Programmable Current Limit and Power Good

Download LT3065IDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

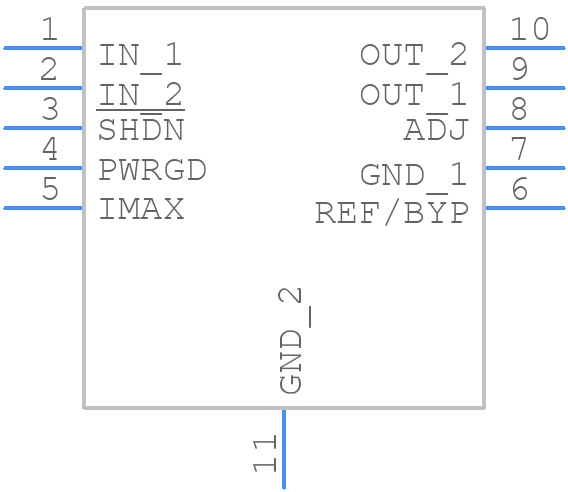

LT3065IDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3065IDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-Lead (3mm × 3mm) Plastic DFN
click to zoom
3D Models
LT3065IDD#PBF - Analog Devices - 3D model - Small Outline No-lead - 10-Lead (3mm × 3mm) Plastic DFN
click to zoom

LT3065IDD#PBF Details

  • Manufacturer Part Number:

    LT3065IDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.51 V

  • Dropout Voltage1-Nom:

    0.3 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.011

  • Load Regulation-Max(%):

    0.666667%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    40 V

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3065IDD#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT3065IDD#PBF is 15V, as specified in the datasheet. However, it's recommended to operate the device within the recommended input voltage range of 2.3V to 15V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. Additionally, make sure to use a suitable output capacitor with a low equivalent series resistance (ESR) and a high ripple current rating to minimize output voltage ripple and ensure stability.
  • The maximum output current that the LT3065IDD#PBF can deliver is 500mA, as specified in the datasheet. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations.
  • To optimize the PSRR of the LT3065IDD#PBF, it's essential to use a high-quality input capacitor with a low ESR and a high ripple current rating. Additionally, ensure that the input voltage is well-regulated and free from noise and ripple. A higher PSRR can be achieved by using a larger input capacitor and optimizing the PCB layout to minimize noise coupling.
  • The thermal shutdown temperature of the LT3065IDD#PBF is typically around 150°C to 160°C, as specified in the datasheet. When the device temperature exceeds this threshold, it will shut down to prevent damage from overheating.
