LT3065IMSE#TRPBF - Analog Devices

Description: LDO Voltage Regulators 45V VIN, 500mA Low Noise, Linear Regulator with Programmable Current Limit and Power Good

Download LT3065IMSE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

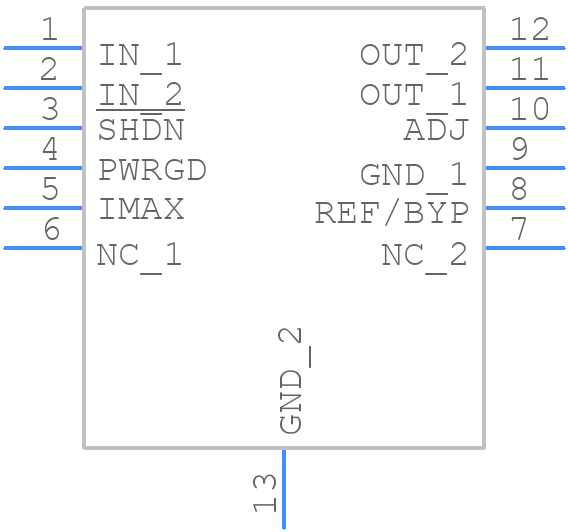

LT3065IMSE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3065IMSE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package
click to zoom
3D Models
LT3065IMSE#TRPBF - Analog Devices - 3D model - Small Outline Packages - MSE Package
click to zoom

LT3065IMSE#TRPBF Details

  • Manufacturer Part Number:

    LT3065IMSE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.51 V

  • Dropout Voltage1-Nom:

    0.3 V

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Line Regulation-Max (%/V):

    0.011

  • Load Regulation-Max(%):

    0.666667%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    40 V

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3065IMSE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3065 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended compensation network and output capacitor values. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. A minimum output capacitance of 10uF is recommended, and the output capacitor should be placed close to the device.
  • The LT3065 has an operating ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
  • The LT3065 has a maximum input voltage rating of 32V. Exceeding this voltage can damage the device. If you need to operate at higher voltages, consider using a voltage regulator with a higher voltage rating or adding external voltage protection circuitry.
  • To troubleshoot issues with the LT3065, start by verifying the input voltage, output voltage, and output current. Check the PCB layout and ensure that it follows the recommended layout guidelines. Use an oscilloscope to measure the output voltage and current waveforms, and check for signs of oscillations or ringing. Consult the datasheet and application notes for troubleshooting guides and FAQs.
