LT3066EDE-5#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT3066EDE-5#PBF - LDO, FIXED, 5V, 0.5A, DFN-12

Download LT3066EDE-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

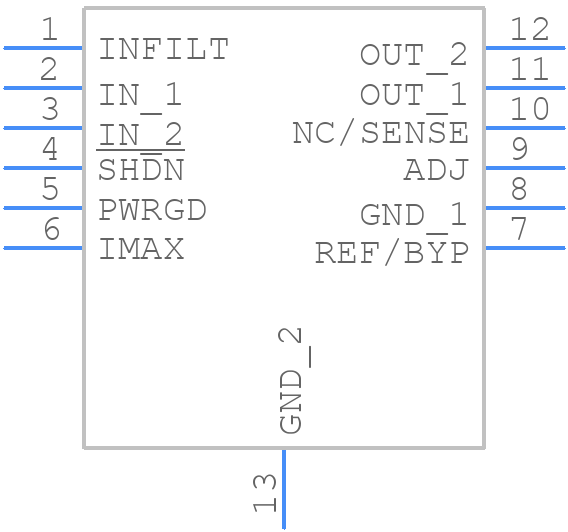

LT3066EDE-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3066EDE-5#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DE/UE Package 12-Lead Plastic DFN (4mm × 3mm)-
click to zoom
3D Models
LT3066EDE-5#PBF - Analog Devices - 3D model - Small Outline No-lead - DE/UE Package 12-Lead Plastic DFN (4mm × 3mm)-
click to zoom

LT3066EDE-5#PBF Details

  • Manufacturer Part Number:

    LT3066EDE-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1695

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.51 V

  • Dropout Voltage1-Nom:

    0.3 V

  • Input Voltage Absolute-Max:

    50 V

  • Input Voltage-Max:

    45 V

  • Input Voltage-Min:

    5.6 V

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Line Regulation-Max:

    0.03%

  • Load Regulation-Max:

    0.033%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature TJ-Max:

    125 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.9 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

LT3066EDE-5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3066EDE-5#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended compensation network and output capacitor values, and to ensure that the output capacitor has a low ESR. Additionally, the input capacitor should be placed close to the device, and the input voltage should be well-regulated.
  • The maximum ambient temperature range for the LT3066EDE-5#PBF is -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, and it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
  • Yes, the LT3066EDE-5#PBF is suitable for high-reliability and automotive applications. It's manufactured using a high-reliability process, and it's qualified to AEC-Q100 standards. However, it's essential to follow the recommended operating conditions, and to ensure that the device is properly derated for the specific application.
  • To troubleshoot issues with the LT3066EDE-5#PBF, start by verifying the input voltage, output voltage, and output current. Check the PCB layout and ensure that it follows the recommended layout guidelines. Use an oscilloscope to check for noise and oscillations, and verify that the output capacitor is properly sized and placed. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support.
