LT3070IUFD-1#PBF - Analog Devices

Description: LDO Voltage Regulators 5A, Low Noise, Programmable Output, Very Low Dropout Linear Regulator

Download LT3070IUFD-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

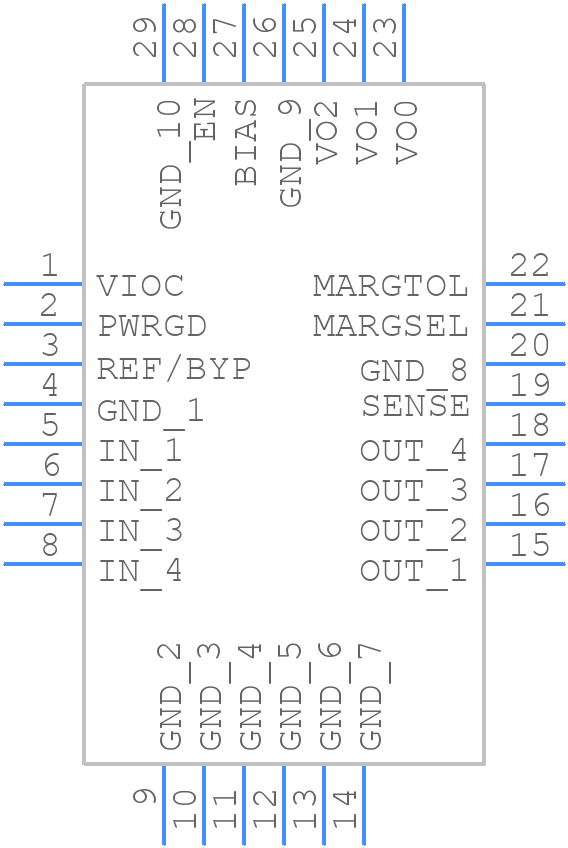

Symbol
LT3070IUFD-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3070IUFD-1#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28-Lead Plastic QFN (4mm × 5mm)
click to zoom
3D Models
LT3070IUFD-1#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 28-Lead Plastic QFN (4mm × 5mm)
click to zoom

LT3070IUFD-1#PBF Details

  • Manufacturer Part Number:

    LT3070IUFD-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1712

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.15 V

  • Dropout Voltage1-Nom:

    0.085 V

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Line Regulation-Max (%/V):

    0.03

  • Load Regulation-Max(%):

    1.625%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    28

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    5 A

  • Output Voltage1-Max:

    1.8 V

  • Output Voltage1-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LT3070IUFD-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device on a thick copper plane, using thermal vias to dissipate heat, and keeping the device away from heat sources. A 4-layer PCB with a dedicated thermal layer is recommended.
  • To ensure stability in the output voltage regulation, it's essential to follow the recommended component values and layout guidelines in the datasheet. Additionally, using a low ESR output capacitor and a high-quality input capacitor can help improve stability.
  • The maximum input voltage that can be applied to the LT3070IUFD-1#PBF is 36V. Exceeding this voltage can cause damage to the device.
  • The LT3070IUFD-1#PBF is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and thermal management guidelines to ensure reliable operation.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output voltage, and output current. Verify that the component values and layout meet the recommended guidelines. Also, check for any signs of overheating, such as excessive temperature or thermal shutdown.
