LT3080EMS8E-1 - Analog Devices

Description: LDO Regulator Pos 0V to 36V 1.1A 8-Pin MSOP EP

Download LT3080EMS8E-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

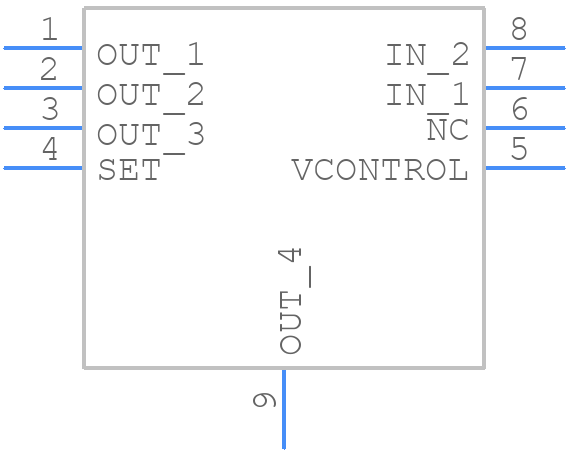

LT3080EMS8E-1 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3080EMS8E-1 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP,
click to zoom
3D Models
LT3080EMS8E-1 - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP,
click to zoom

LT3080EMS8E-1 Details

  • Manufacturer Part Number:

    LT3080EMS8E-1

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, MSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.5 V

  • Dropout Voltage1-Nom:

    0.35 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    3 mm

  • Load Regulation-Max(%):

    0.13%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.1 A

  • Output Voltage1-Max:

    36 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3080EMS8E-1 Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT3080EMS8E-1 is 40V, but it's recommended to keep it below 36V for reliable operation.
  • To ensure stability, it's essential to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Additionally, the output capacitor should be placed close to the output pin to minimize parasitic inductance.
  • The minimum input voltage required for the LT3080EMS8E-1 to operate is 2.5V, but it's recommended to keep it above 3V for reliable operation.
  • The LT3080EMS8E-1 is rated for operation up to 125°C, but it's essential to ensure proper thermal management to prevent overheating. A heat sink or thermal pad may be required for high-power applications.
  • The output voltage of the LT3080EMS8E-1 can be adjusted by using a resistive divider network between the output pin and the adjust pin. The ratio of the resistors determines the output voltage.
