LT3080IQ#TRPBF - Analog Devices

LT3080IQ#TRPBF Details

• Manufacturer Part Number:

  LT3080IQ#TRPBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

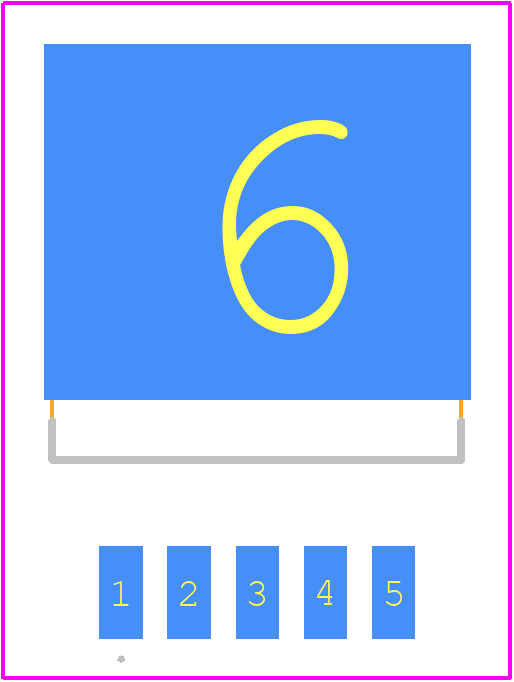

• Package Description:

  DDPAK-5

• Pin Count:

  5

• Manufacturer Package Code:

  05-08-1461

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Adjustability:

  ADJUSTABLE

• Dropout Voltage1-Max:

  0.5 V

• Dropout Voltage1-Nom:

  0.35 V

• JESD-30 Code:

  R-PSSO-G5

• JESD-609 Code:

  e3

• Length:

  10.2235 mm

• Load Regulation-Max(%):

  0.0036%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  5

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  1.1 A

• Output Voltage1-Max:

  36 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG

• Packing Method:

  TR

• Qualification Status:

  Not Qualified

• Regulator Type:

  ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  4.877 mm

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  Matte Tin (Sn) - with Nickel (Ni) barrier

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.702 mm

• Terminal Position:

  SINGLE

• Width:

  8.89 mm
