LT3089IFE#PBF - Analog Devices

Description: LDO Voltage Regulators 800mA Single Resistor Rugged Linear Regulator with Monitors

Download LT3089IFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

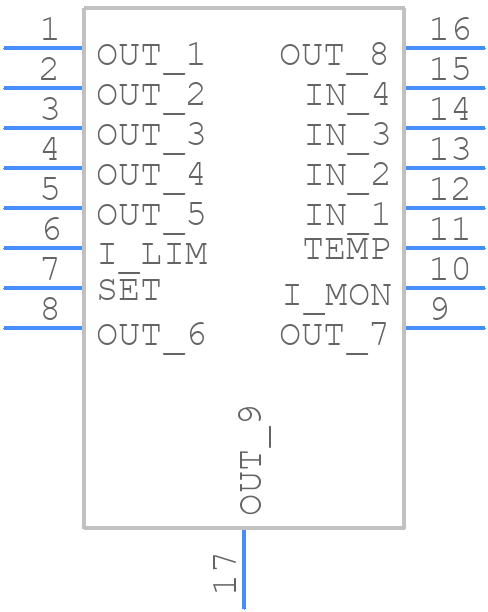

LT3089IFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3089IFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Plastic TSSOP-ren1
click to zoom
3D Models
LT3089IFE#PBF - Analog Devices - 3D model - Small Outline Packages - 16-Lead Plastic TSSOP-ren1
click to zoom

LT3089IFE#PBF Details

  • Manufacturer Part Number:

    LT3089IFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1663 (BB)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    1.65 V

  • Dropout Voltage1-Nom:

    1.47 V

  • Input-Output Voltage Differential-Max:

    36 V

  • Input-Output Voltage Differential-Min:

    2 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.8 A

  • Output Voltage1-Max:

    34.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

LT3089IFE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT3089IFE#PBF is 36V, but it's recommended to keep it below 30V for optimal performance and reliability.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended layout and component placement guidelines, use a sufficient output capacitor, and add a compensation capacitor (Ccomp) between the VOUT and FB pins.
  • The minimum ESR required for the output capacitor is 0.05Ω, but it's recommended to use a capacitor with an ESR of 0.01Ω or lower for optimal performance.
  • The LT3089IFE#PBF is rated for operation up to 125°C, but it's essential to consider the thermal derating and ensure that the junction temperature (TJ) does not exceed 150°C. Proper thermal management and heat sinking may be required for high-temperature applications.
  • The output voltage of the LT3089IFE#PBF can be adjusted by changing the value of the feedback resistor (RFB) or the output resistor (ROUT). A higher RFB value will result in a higher output voltage, while a lower RFB value will result in a lower output voltage.
