LT3091HFE#PBF - Analog Devices

Description: LDO Voltage Regulators -36V, 1.5A Negative Linear Regulator with Programmable Current Limit

Download LT3091HFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

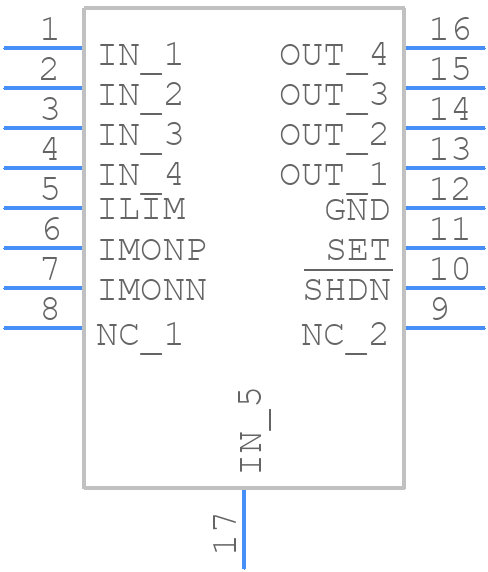

Symbol
LT3091HFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3091HFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 16-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1663) Exposed Pad Variation BB
click to zoom
3D Models
LT3091HFE#PBF - Analog Devices - 3D model - Small Outline Packages - FE Package 16-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1663) Exposed Pad Variation BB
click to zoom

LT3091HFE#PBF Details

  • Manufacturer Part Number:

    LT3091HFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1663 (BC)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.45 V

  • Dropout Voltage1-Nom:

    0.3 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1.5 A

  • Output Voltage1-Max:

    32 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Regulator Type:

    ADJUSTABLE NEGATIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

LT3091HFE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT3091HFE#PBF is 60V, but it's recommended to operate within the specified input voltage range of 4.5V to 40V for optimal performance and reliability.
  • To ensure the stability of the output voltage, make sure to follow the recommended layout and component selection guidelines in the datasheet, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, ensure that the input voltage is within the specified range and that the device is operated within its recommended operating conditions.
  • The maximum output current that the LT3091HFE#PBF can deliver is 1.5A, but this can be limited by the input voltage, output voltage, and thermal conditions. Be sure to check the device's thermal performance and power dissipation calculations to ensure that the device can deliver the required output current in your application.
  • The LT3091HFE#PBF has built-in overcurrent protection and thermal shutdown features to protect the device from damage. However, it's still important to follow proper design and layout practices, such as using a suitable heat sink and ensuring good thermal conductivity, to prevent overheating. Additionally, consider adding external overcurrent protection devices, such as fuses or current limiters, to further protect the device and your system.
  • The LT3091HFE#PBF is rated for operation up to 125°C, but its performance and reliability may be affected at high temperatures. Be sure to check the device's thermal performance and power dissipation calculations to ensure that it can operate reliably in your specific application. Additionally, consider using a heat sink or other thermal management techniques to keep the device within its recommended operating temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3091HFE#PBF Overview

Use the download button to access the LT3091HFE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT309, or try a keyword search, such as Linear Regulator ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
