LT3092EDD#TRPBF - Analog Devices

Description: Adjustable Current Source 8-Pin DFN EP T/R

Download LT3092EDD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

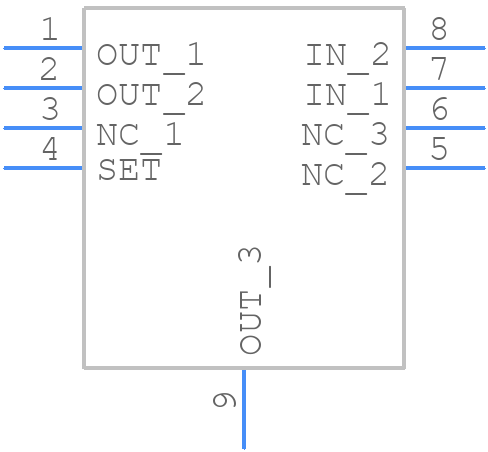

LT3092EDD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3092EDD#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead Plastic DFN (3mm × 3mm)_2021
click to zoom
3D Models
LT3092EDD#TRPBF - Analog Devices - 3D model - Small Outline No-lead - 8-Lead Plastic DFN (3mm × 3mm)_2021
click to zoom

LT3092EDD#TRPBF Details

  • Manufacturer Part Number:

    LT3092EDD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3092EDD#TRPBF Frequently Asked Questions (FAQs)

  • The maximum output current of the LT3092EDD is 2A. However, it's recommended to operate the device within the specified output current range of 1.5A to ensure reliable operation and minimize thermal issues.
  • To minimize EMI, it's essential to follow proper PCB layout practices. Keep the input and output capacitors close to the device, use a solid ground plane, and minimize trace lengths. Additionally, use a shielded inductor and orient it to minimize radiation.
  • The recommended input capacitor type for the LT3092EDD is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric capacitor, with a voltage rating of at least 2x the input voltage.
  • To select the right inductor for the LT3092EDD, consider the following factors: inductance value, saturation current, and DC resistance. A good starting point is to use an inductor with an inductance value between 1.5μH to 3.3μH, a saturation current of at least 2A, and a DC resistance of less than 100mΩ.
  • The thermal derating curve for the LT3092EDD can be found in the datasheet. As a general guideline, the device can operate up to 125°C junction temperature, but the output current should be derated by 50% at 85°C and 75% at 100°C to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3092EDD#TRPBF Overview

Use the download button to access the LT3092EDD#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT309, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
