Part Image

LT3094MPDD#PBF - Analog Devices

Description: −20V, 500mA, Ultralow Noise, Ultrahigh PSRR Negative Linear Regulator

Download LT3094MPDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

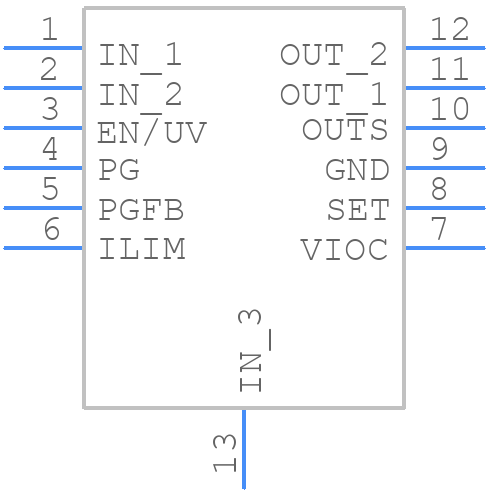

LT3094MPDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3094MPDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 12-Lead Plastic DFN (3mm × 3mm)
click to zoom
3D Models
LT3094MPDD#PBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 12-Lead Plastic DFN (3mm × 3mm)
click to zoom

LT3094MPDD#PBF Details

  • Manufacturer Part Number:

    LT3094MPDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1725

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-01-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.41 V

  • Dropout Voltage1-Nom:

    0.235 V

  • Input-Output Voltage Differential-Max:

    20 V

  • Input-Output Voltage Differential-Min:

    2.3 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Load Regulation-Max(%):

    0.01%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -55 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    19.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,18

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Regulator Type:

    ADJUSTABLE NEGATIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3094MPDD#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT3094MPDD is 40V, but it's recommended to operate within the specified input voltage range of 3.5V to 36V for optimal performance.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the output voltage can be adjusted using the feedback resistors.
  • The maximum output current that the LT3094MPDD can deliver is 2A, but it's recommended to operate within the specified output current range of 0A to 1.5A for optimal performance and to prevent overheating.
  • To protect the LT3094MPDD from overheating, it's essential to provide adequate heat sinking, ensure good airflow, and operate within the specified temperature range of -40°C to 125°C. Additionally, the device should be mounted on a PCB with a thermal pad to dissipate heat efficiently.
  • Yes, the LT3094MPDD is suitable for high-reliability applications, including automotive, industrial, and medical devices, due to its high reliability, low dropout voltage, and high accuracy.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3094MPDD#PBF Overview

Use the download button to access the LT3094MPDD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT309, or try a keyword search, such as Linear Regulator ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
