LT3154AV#PBF - Analog Devices

Description: 5.5V 6A Low-IQ Monolithic Buck-Boost DC/DC Converter Single Inductor Buck-Boost Architecture Low Noise Buck-Boost Architecture

Download LT3154AV#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

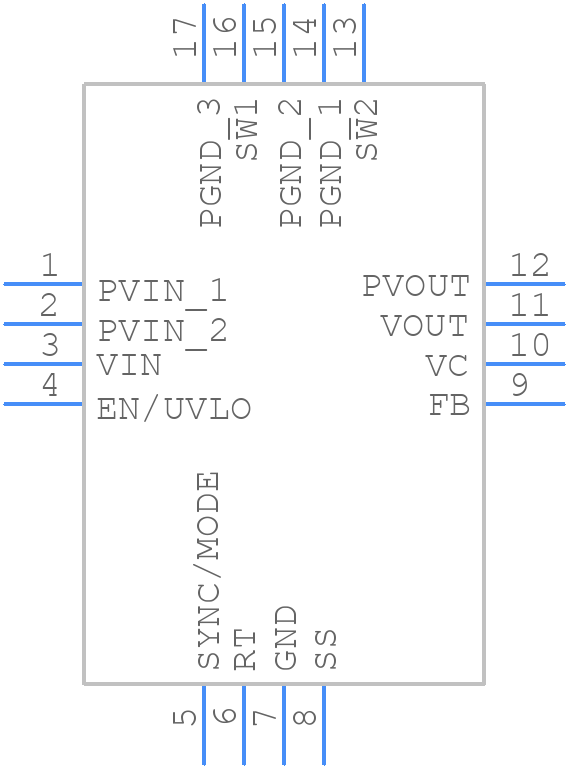

LT3154AV#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3154AV#PBF - Analog Devices PCB footprint - Other - Other - 16-LEAD (3mm × 3mm × 0.75mm)
click to zoom
3D Models
LT3154AV#PBF - Analog Devices - 3D model - Other - 16-LEAD (3mm × 3mm × 0.75mm)
click to zoom

LT3154AV#PBF Details

  • Manufacturer Part Number:

    LT3154AV#PBF

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LGA/CASON/CH ARRY SO NO LD

  • Package Description:

    LQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    LGA/CASON/CH ARRY SO NO LD

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2023-02-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.8 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    1.8 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.83 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    4000 kHz

  • Technology:

    BIPOLAR

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

LT3154AV#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3154AV involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the analog and digital grounds separate.
  • To ensure stability, it's essential to follow the recommended compensation network and component values, as well as to ensure that the input and output capacitors meet the recommended specifications. Additionally, the device's output should be properly decoupled, and the input voltage should be well-regulated.
  • The LT3154AV is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to ensure that the device's junction temperature does not exceed 150°C.
  • Yes, the LT3154AV is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard, and it's manufactured using a high-reliability process. However, it's essential to follow the recommended design and testing guidelines to ensure the device's reliability in these applications.
  • To troubleshoot issues with the LT3154AV, start by verifying that the device is properly powered and that the input and output voltages are within the recommended specifications. Check the device's output for oscillations or instability, and ensure that the compensation network is properly configured. If the issue persists, consult the datasheet and application notes for guidance, or contact Analog Devices' technical support.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3154AV#PBF Overview

Use the download button to access the LT3154AV#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT315, or try a keyword search, such as Switching Regulator or Controllers
