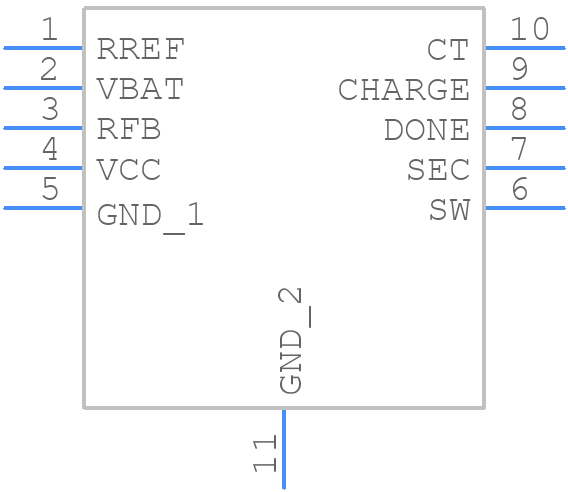

LT3420EDD-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3420EDD-1#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - LFCSP:LEADFRM CHIP SCALE_2023-2
click to zoom
3D Models
LT3420EDD-1#PBF - Analog Devices - 3D model - Small Outline No-lead - LFCSP:LEADFRM CHIP SCALE_2023-2
click to zoom

LT3420EDD-1#PBF Details

  • Manufacturer Part Number:

    LT3420EDD-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, PLASTIC, MO-229WEED-2, DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3420EDD-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3420EDD-1#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the digital and analog signals separate to minimize noise and interference.
  • To ensure the stability of the output voltage of the LT3420EDD-1#PBF, it's essential to choose the correct output capacitor value and type. A minimum output capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple and oscillation. Additionally, the output voltage should be decoupled from the input voltage using a capacitor and a resistor in series.
  • The maximum ambient temperature range for the LT3420EDD-1#PBF is -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, and it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
  • Yes, the LT3420EDD-1#PBF is suitable for high-reliability applications. It's a high-performance, low-dropout linear regulator that meets the requirements of many high-reliability industries, including automotive, industrial, and medical. However, it's essential to follow proper design and manufacturing guidelines to ensure the device's reliability and performance in these applications.
  • To troubleshoot issues with the LT3420EDD-1#PBF, start by checking the input voltage, output voltage, and output current. Verify that the device is properly connected and that the input and output capacitors are correctly sized and connected. Check for any signs of overheating, and ensure that the device is operated within its recommended operating conditions. If the issue persists, consult the datasheet and application notes for further guidance.
