LT3420EMS-1#PBF - Analog Devices

Description: Photoflash Capacitor Chargers with Automatic Refresh

Download LT3420EMS-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

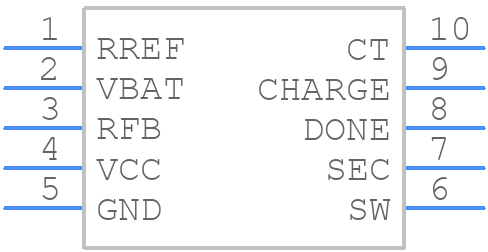

LT3420EMS-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3420EMS-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 10-Lead Plastic MSOP_(H=1.1mm)
click to zoom
3D Models
LT3420EMS-1#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 10-Lead Plastic MSOP_(H=1.1mm)
click to zoom

LT3420EMS-1#PBF Details

  • Manufacturer Part Number:

    LT3420EMS-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3420EMS-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3420EMS-1#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value and type. Additionally, avoid using long input and output traces, and minimize the noise on the input and output lines.
  • The maximum ambient temperature range for the LT3420EMS-1#PBF is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the output voltage may drop. It's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
  • Yes, the LT3420EMS-1#PBF is suitable for high-reliability applications. It's built with high-reliability materials and manufacturing processes, and it's designed to meet the requirements of high-reliability industries such as aerospace, defense, and medical devices.
  • To troubleshoot issues with the LT3420EMS-1#PBF, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are of the correct value and type, and that the PCB layout is correct. Use an oscilloscope to check for noise and oscillations on the input and output lines. If the issue persists, consult the datasheet and application notes for further guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3420EMS-1#PBF Overview

Use the download button to access the LT3420EMS-1#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT342, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
