LT3466EDD#PBF - Analog Devices

Description: LT3466EDD#PBF, LED Display Controller 20-Segments, 12 V, 15 V, 18 V, 3.3 V, 5 V, 9 V, 10-Pin DFN EP

Download LT3466EDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

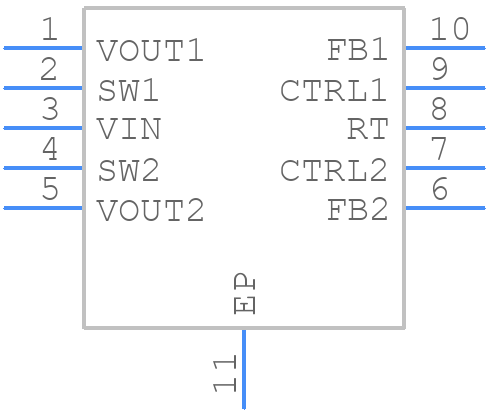

LT3466EDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3466EDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - LT3466EDD#PBF
click to zoom
3D Models
LT3466EDD#PBF - Analog Devices - 3D model - Small Outline No-lead - LT3466EDD#PBF
click to zoom

LT3466EDD#PBF Details

  • Manufacturer Part Number:

    LT3466EDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, PLASTIC, MO-229-WEED-2, DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    0.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2000 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3466EDD#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that the LT3466EDD#PBF can handle is 36V, but it's recommended to operate within the specified input voltage range of 3.5V to 25V for optimal performance.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the input voltage should be well-regulated and free of noise.
  • The minimum input capacitance required for the LT3466EDD#PBF is 10uF, but it's recommended to use a higher value, such as 22uF or 47uF, to ensure stable operation and minimize input voltage ripple.
  • The LT3466EDD#PBF is rated for operation up to 125°C, but it's essential to consider the thermal design and ensure that the device is properly heat-sinked to prevent overheating. Additionally, the device's performance may degrade at high temperatures, so it's crucial to consult the datasheet and application notes for guidance.
  • The output voltage of the LT3466EDD#PBF can be calculated using the following formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors used in the feedback network. The output voltage range is 0.8V to 15V.
