LT3484EDCB-0#TRMPBF - Analog Devices

Description: Highly Integrated IC in 2mm × 3mm DFN Package Reduces Solution Size ■ Uses Small Transformers: 5.8mm × 5.8mm × 3mm ■ Fast Photoflash Charge Times: 4.6s for LT3484-0 (0V to 320V, 100µF, VIN = 3.6V) 5.7s for LT3484-2 (0V to 320V, 100µF, VIN = 3.6V) 5.5s for LT3484-1 (0V to 320V, 50µF, VIN = 3.6V) ■ Operates from Two AA Batteries, or Any Supply from 1.8V up to 16V ■ Controlled Average Input Current 500mA (LT3484-0) 350mA (LT3484-2) 225mA (LT3484-1)

Download LT3484EDCB-0#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

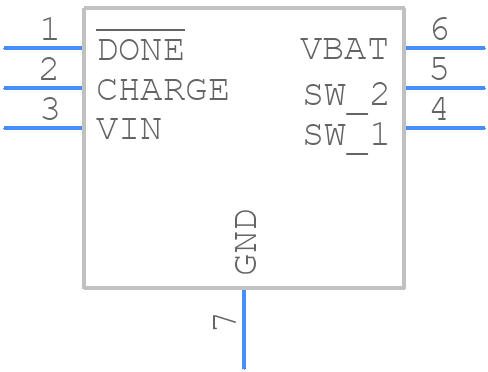

LT3484EDCB-0#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3484EDCB-0#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DCB Package 6-Lead Plastic DFN (2mm × 3mm)
click to zoom
3D Models
LT3484EDCB-0#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - DCB Package 6-Lead Plastic DFN (2mm × 3mm)
click to zoom

LT3484EDCB-0#TRMPBF Details

  • Manufacturer Part Number:

    LT3484EDCB-0#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    2 X 3 MM, LEAD FREE, PLASTIC, MO-229TBD, DFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    05-08-1715

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC6,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LT3484EDCB-0#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3484EDCB-0#TRMPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the analog and digital grounds separate.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to decouple the input and output pins with suitable capacitors, and use a compensation network if necessary. It's also recommended to simulate the design using SPICE models and to test the prototype thoroughly.
  • The LT3484EDCB-0#TRMPBF can operate in an ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures, so it's recommended to derate the device's specifications accordingly.
  • Yes, the LT3484EDCB-0#TRMPBF is suitable for high-reliability and automotive applications. It's manufactured using a high-reliability process, and it's qualified to the AEC-Q100 standard for automotive applications. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific requirements of the application.
  • To troubleshoot issues with the LT3484EDCB-0#TRMPBF, start by checking the device's input and output voltages, and ensure that the device is properly powered and biased. Use an oscilloscope to check for oscillations or other anomalies on the output. Also, check the PCB layout and component values to ensure they match the recommended values. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support for further assistance.
