LT3484EDCB-1#TRMPBF - Analog Devices

Description: Highly Integrated IC in 2mm × 3mm DFN Package Reduces Solution Size ■ Uses Small Transformers: 5.8mm × 5.8mm × 3mm ■ Fast Photoflash Charge Times: 4.6s for LT3484-0 (0V to 320V, 100µF, VIN = 3.6V) 5.7s for LT3484-2 (0V to 320V, 100µF, VIN = 3.6V) 5.5s for LT3484-1 (0V to 320V, 50µF, VIN = 3.6V) ■ Operates from Two AA Batteries, or Any Supply from 1.8V up to 16V

Download LT3484EDCB-1#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

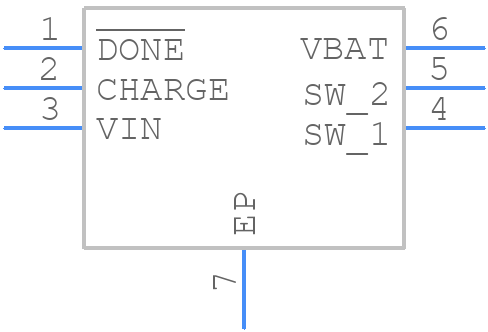

LT3484EDCB-1#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3484EDCB-1#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 6-Lead Plastic DFN (2mm × 3mm)
click to zoom
3D Models
LT3484EDCB-1#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - 6-Lead Plastic DFN (2mm × 3mm)
click to zoom

LT3484EDCB-1#TRMPBF Details

  • Manufacturer Part Number:

    LT3484EDCB-1#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    2 X 3 MM, LEAD FREE, PLASTIC, MO-229TBD, DFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    05-08-1715

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC6,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LT3484EDCB-1#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3484EDCB-1 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR and is properly sized for the output voltage and current. Additionally, add a small ceramic capacitor (e.g., 10nF) between the VIN and GND pins to filter out high-frequency noise.
  • The maximum ambient temperature range for the LT3484EDCB-1 is -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
  • Yes, the LT3484EDCB-1 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade devices and is suitable for use in harsh environments. However, it's essential to follow proper design and manufacturing guidelines to ensure the device's reliability and performance.
  • To troubleshoot issues with the LT3484EDCB-1, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, component values, and soldering quality. Use an oscilloscope to measure the output voltage ripple, input voltage, and current. Consult the datasheet and application notes for guidance on troubleshooting common issues.
