LT3492IFETRPBF - Analog Devices

Description: n True Color PWM™ Dimming Delivers Up to 3000:1 Dimming Ratio n Built-In Gate Driver for PMOS LED Disconnect n Three Independent Driver Channels with 600mA, 60V Internal Switches n Operates in Buck, Boost, Buck-Boost Modes n CTRL Pin Accurately Sets LED Current Sense Threshold Over a Range of 10mV to 100mV n Adjustable Frequency: 330kHz to 2.1MHz n Open LED Protection n Wide Input Voltage Range: Operation from 3V to 30V Transient Protection to 40V n Surface Mount Components n 28-Lead (4mm ×

Download LT3492IFETRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

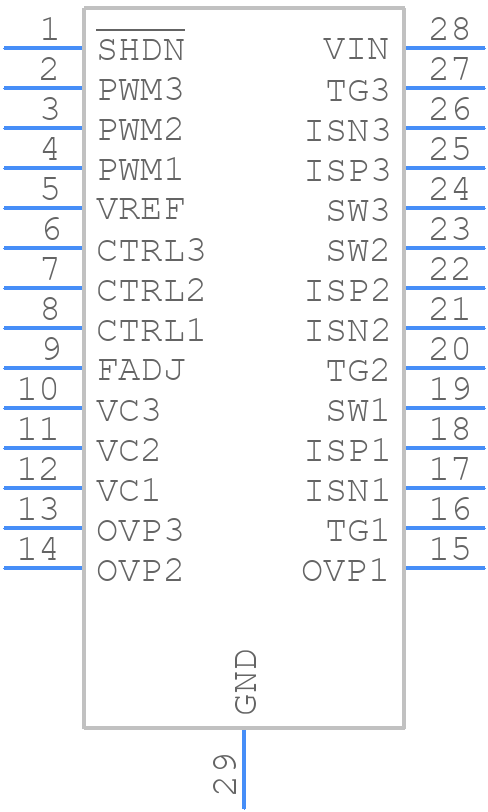

LT3492IFETRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3492IFETRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 28-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1663 Rev K) Exposed Pad Variatio
click to zoom
3D Models
LT3492IFETRPBF - Analog Devices - 3D model - Small Outline Packages - FE Package 28-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1663 Rev K) Exposed Pad Variatio
click to zoom

LT3492IFETRPBF Details

  • Manufacturer Part Number:

    LT3492IFETRPBF

  • Manufacturer:

    Analog Devices Inc

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LT3492IFETRPBF Overview

Use the download button to access the LT3492IFETRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT349, or try a keyword search, such as Display Drivers
