A good PCB layout for the LT3496EUFD#PBF involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitors are of high quality and have low ESR. It's also important to decouple the input and output with capacitors to prevent oscillation.
The maximum ambient temperature range for the LT3496EUFD#PBF is -40°C to 125°C. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
Yes, the LT3496EUFD#PBF is suitable for high-reliability applications. It's manufactured using a high-reliability process and has undergone rigorous testing to ensure its performance and reliability. However, it's recommended to follow proper design and manufacturing guidelines to ensure the device operates within its specifications.
To troubleshoot issues with the LT3496EUFD#PBF, start by checking the input and output voltages, as well as the current consumption. Verify that the device is properly powered and that the input and output capacitors are of high quality. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LT3496EUFD#PBF Overview

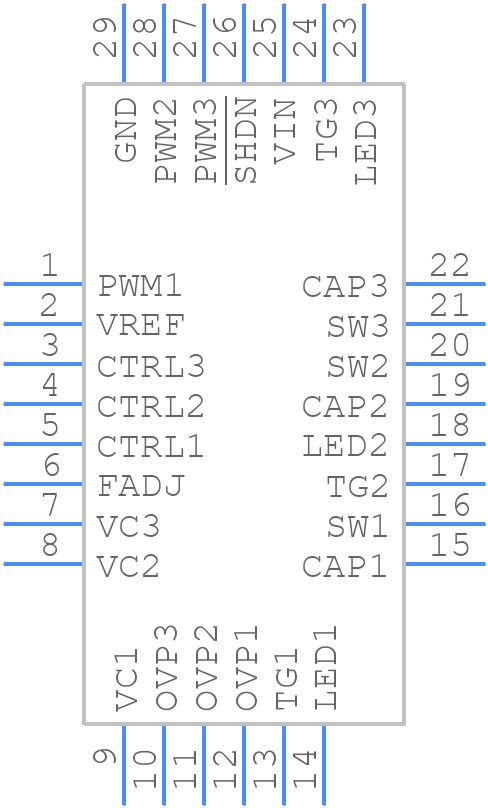

Use the download button to access the LT3496EUFD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT349,
or try a keyword search, such as Display Drivers
