LT3510IFE#PBF - Analog Devices

Description: LT3510 - Monolithic Dual TRACKING 2A STEP DOWN Switching Regulator

Download LT3510IFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

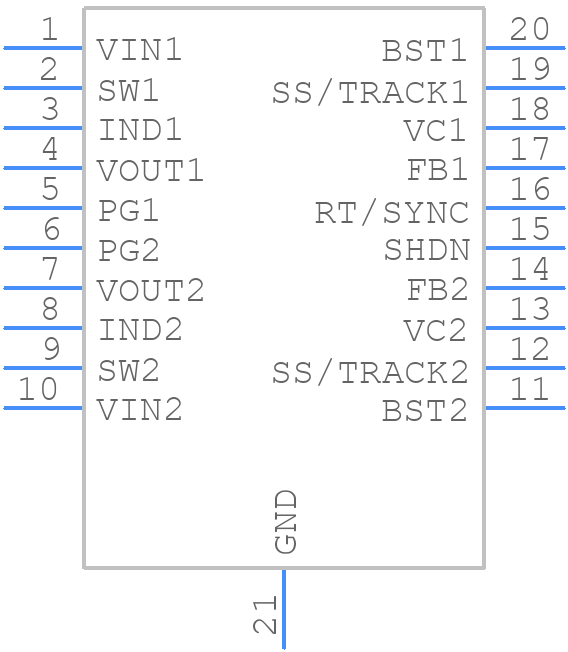

Symbol
LT3510IFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3510IFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 20-Lead Plastic TSSOP (4.4mm)_2022
click to zoom
3D Models
LT3510IFE#PBF - Analog Devices - 3D model - Small Outline Packages - FE Package 20-Lead Plastic TSSOP (4.4mm)_2022
click to zoom

LT3510IFE#PBF Details

  • Manufacturer Part Number:

    LT3510IFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.40 MM, LEAD FREE, PLASTIC, TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1663 (CB)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    25 V

  • Input Voltage-Min:

    3.1 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PHASE-SHIFT

  • Switching Frequency-Max:

    1800 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LT3510IFE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the LT3510IFE#PBF near a thermal pad or a heat sink, and ensuring that there are no thermal barriers between the device and the heat sink. Additionally, using a 2-layer or 4-layer PCB with a solid ground plane can help to dissipate heat more efficiently.
  • To ensure stable operation with a high-ESR output capacitor, it is recommended to add a small ceramic capacitor (e.g. 10nF) in parallel with the output capacitor to provide a low-ESR path for high-frequency noise. Additionally, the output capacitor should be placed close to the LT3510IFE#PBF to minimize parasitic inductance.
  • The maximum input voltage that can be applied to the LT3510IFE#PBF is 42V, although the recommended maximum input voltage is 36V to ensure reliable operation. Exceeding the maximum input voltage can cause damage to the device.
  • The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESR) / (f * C), where Iout is the output current, ESR is the equivalent series resistance of the output capacitor, f is the switching frequency, and C is the output capacitance.
  • The recommended input capacitor value is 10uF to 22uF, and the type should be a low-ESR ceramic or film capacitor. The input capacitor should be placed close to the LT3510IFE#PBF to minimize parasitic inductance.
