LT3512MPMS#PBF - Analog Devices

Description: Monolithic High Voltage Isolated Flyback Converter

Download LT3512MPMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

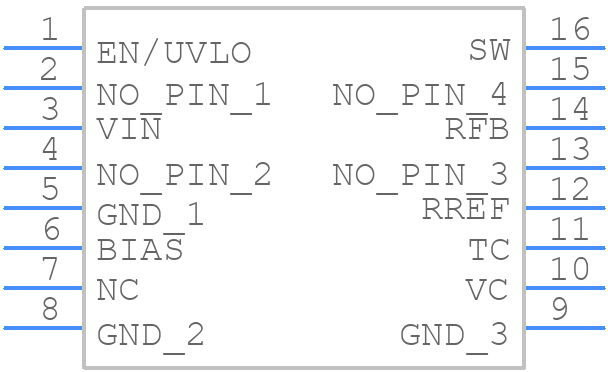

LT3512MPMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3512MPMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package
click to zoom
3D Models
LT3512MPMS#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package
click to zoom

LT3512MPMS#PBF Details

  • Manufacturer Part Number:

    LT3512MPMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-16/12

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1847

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    100 V

  • Input Voltage-Min:

    6 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    0.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP12/16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    650 kHz

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3512MPMS#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the LT3512MPMS#PBF near a thermal pad or a heat sink, and ensuring that there are no thermal barriers between the device and the heat sink. Additionally, using a 2-layer or 4-layer PCB with a solid ground plane can help to dissipate heat more efficiently.
  • To ensure the stability of the output voltage, it's essential to follow the recommended component values and layout guidelines in the datasheet. Additionally, using a low-ESR output capacitor and a high-quality input capacitor can help to improve the stability of the output voltage. It's also important to minimize the loop area of the feedback network to reduce noise and oscillations.
  • The maximum input voltage that can be applied to the LT3512MPMS#PBF is 42V. Exceeding this voltage can cause damage to the device. It's essential to ensure that the input voltage is within the recommended range to ensure reliable operation and to prevent damage to the device.
  • The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ΔVout is the output voltage ripple, Iout is the output current, ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency. This formula assumes that the output capacitor is the dominant contributor to the output voltage ripple.
  • The recommended input capacitor value is 10uF to 22uF, and the recommended type is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric capacitor. This type of capacitor can help to reduce the input voltage ripple and improve the overall performance of the device.
