LT3574EMSPBF - Analog Devices

Description: n 3V to 40V Input Voltage Range n 0.65A, 60V Integrated NPN Power Switch n Boundary Mode Operation n No Transformer Third Winding or Opto-Isolator Required for Regulation n Improved Primary-Side Winding Feedback Load Regulation n VOUT Set with Two External Resistors n BIAS Pin for Internal Bias Supply and Power NPN Driver n Programmable Soft-Start n Programmable Power Switch Current Limit n 16-Lead MSOP Package

Download LT3574EMSPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

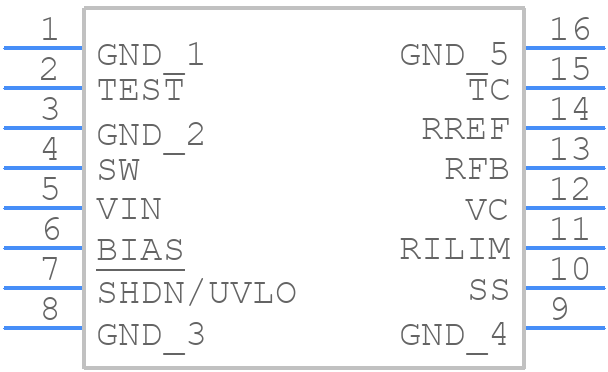

LT3574EMSPBF - Analog Devices - PCB symbol
