LT3579EUFD#PBF - Analog Devices

Description: Switching Voltage Regulators 6A Boost/Inverting DC/DC Converter with Fault Protection

Download LT3579EUFD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

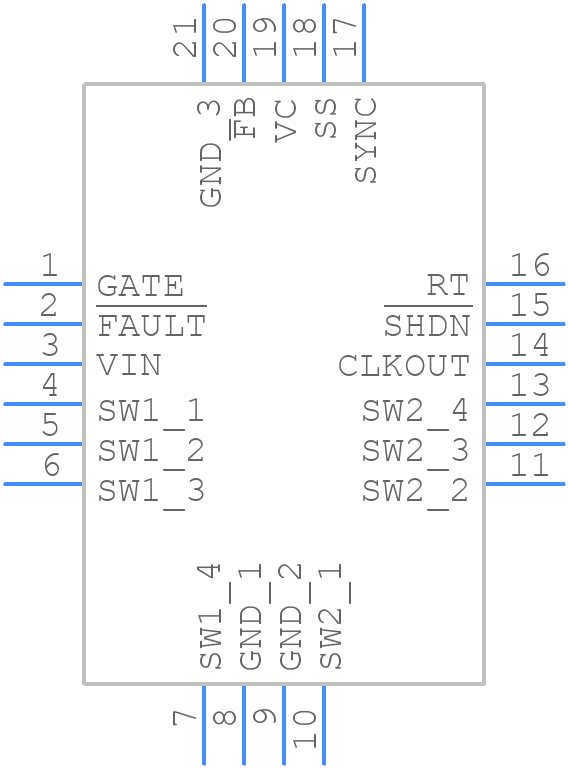

LT3579EUFD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3579EUFD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20-Lead (4mm × 5mm) Plastic QFN
click to zoom
3D Models
LT3579EUFD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 20-Lead (4mm × 5mm) Plastic QFN
click to zoom

LT3579EUFD#PBF Details

  • Manufacturer Part Number:

    LT3579EUFD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 5 MM, LEAD FREE, PLASTIC, MO-220, QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1711

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR
