LT3580EDD#TRMPBF - Analog Devices

Description: Boost/Inverting DC/DC Converter with 2A Switch, Soft-Start, and Synchronization

Download LT3580EDD#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

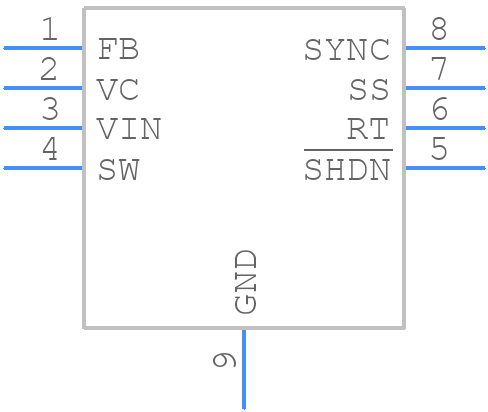

Symbol
LT3580EDD#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3580EDD#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD DFN 3*3_2025
click to zoom
3D Models
LT3580EDD#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - DD DFN 3*3_2025
click to zoom

LT3580EDD#TRMPBF Details

  • Manufacturer Part Number:

    LT3580EDD#TRMPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3580EDD#TRMPBF Overview

Use the download button to access the LT3580EDD#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT358, or try a keyword search, such as Switching Regulator or Controllers
