LT3580EMS8EPBF - Analog Devices

Description: 2A Internal Power Switch n Adjustable Switching Frequency n Single Feedback Resistor Sets VOUT n Synchronizable to External Clock n High Gain SHDN Pin Accepts Slowly Varying Input Signals n Wide Input Voltage Range: 2.5V to 32V n Low VCESAT Switch: 300mV at 1.5A (Typical) n Integrated Soft-Start Function n Easily Configurable as a Boost or Inverting Converter n User Configurable Undervoltage Lockout (UVLO) n Tiny 8-Lead 3mm × 3mm DFN and 8-Lead MSOP Packages

Download LT3580EMS8EPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

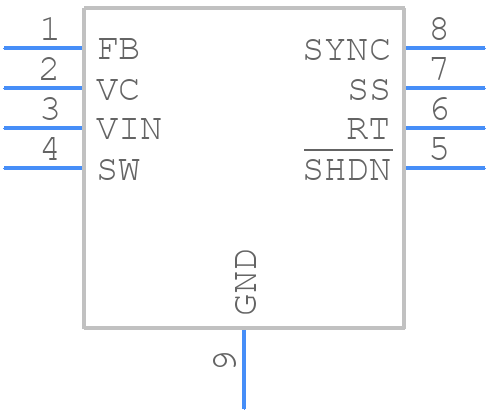

LT3580EMS8EPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3580EMS8EPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1662 Rev F)..
click to zoom
3D Models
LT3580EMS8EPBF - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1662 Rev F)..
click to zoom

LT3580EMS8EPBF Details

  • Manufacturer Part Number:

    LT3580EMS8EPBF

  • Manufacturer:

    Analog Devices Inc

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LT3580EMS8EPBF Overview

Use the download button to access the LT3580EMS8EPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT358, or try a keyword search, such as Switching Regulator or Controllers
