LT3585EDDB-1#TRMPBF - Analog Devices

Description: Photoflash Charger with Adjustable Input Current and IGBT Driver

Download LT3585EDDB-1#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

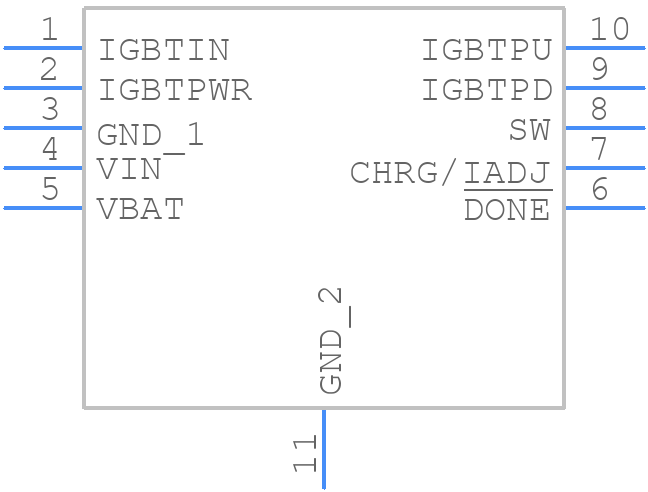

LT3585EDDB-1#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3585EDDB-1#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - LT3585EDDB-1#TRMPBF*
click to zoom
3D Models
LT3585EDDB-1#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - LT3585EDDB-1#TRMPBF*
click to zoom

LT3585EDDB-1#TRMPBF Details

  • Manufacturer Part Number:

    LT3585EDDB-1#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 2 MM, LEAD FREE, PLASTIC, MO-229WECD-1, DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1722

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    BATTERY CHARGE CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    1.5 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    0.65 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LT3585EDDB-1#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3585EDDB-1#TRMPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability and prevent oscillations, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low ESR and is properly decoupled from the output voltage. You can also add a small resistor (e.g., 1Ω) in series with the output capacitor to dampen oscillations.
  • The maximum ambient temperature for reliable operation of the LT3585EDDB-1#TRMPBF is 125°C. However, the device can operate up to 150°C with derating. It's essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
  • While it's possible to use a different inductor value or type, it's not recommended. The recommended inductor value and type are carefully selected to ensure optimal performance and stability. Using a different inductor may affect the device's performance, efficiency, and stability. If you must use a different inductor, ensure it meets the recommended specifications and consult with Analog Devices' support team.
  • To troubleshoot issues with your design, start by verifying the input voltage, output voltage, and current. Check for proper component values, PCB layout, and thermal management. Use an oscilloscope to inspect the output voltage ripple, switching frequency, and input/output currents. Consult the datasheet and application notes for guidance, and contact Analog Devices' support team if needed.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3585EDDB-1#TRMPBF Overview

Use the download button to access the LT3585EDDB-1#TRMPBF schematic symbol, PCB footprint, and 3D model.
