Part Image

LT3598IFEPBF - Analog Devices

Description: n True Color PWM™ Dimming Delivers Up to 3000:1 Dimming Ratio n Drives Six Strings of LEDs at Up to 30mA n ±1.5% Accurate LED Current Matching n Wide Input Voltage Range: 3.2V to 30V n Output Voltage Up to 44V n Regulates Current Even When VIN > VOUT n Disconnects LEDs in Shutdown n Programmable Open LED Protection (Regulated) n OPENLED Alert Pin n Programmable LED Current Derating n Adjustable Frequency: 200kHz to 2.5MHz n Synchronizable to an External Clock n Parallel Channels for Higher Curr

Download LT3598IFEPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

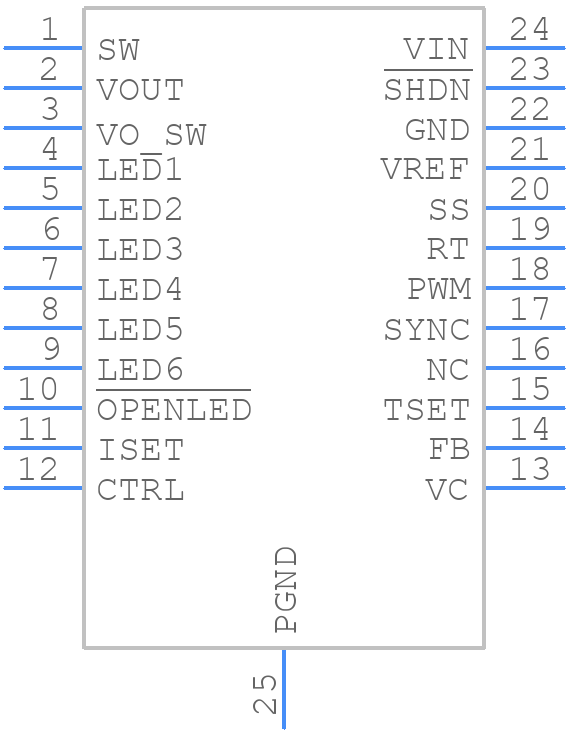

LT3598IFEPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3598IFEPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 24-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1771 Rev B) Exposed Pad Variation AA
click to zoom
3D Models
LT3598IFEPBF - Analog Devices - 3D model - Small Outline Packages - FE Package 24-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1771 Rev B) Exposed Pad Variation AA
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for LT3598IFEPBF
  • Part Number LT3598IFEPBF
  • Manufacturer Analog Devices
  • Pin Count 25
  • Part Category Integrated Circuit
  • Package Category Small Outline Packages
  • Footprint Name Small Outline Packages - FE Package 24-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1771 Rev B) Exposed Pad Variation AA
  • Released Date Jan 11, 2017
  • Last Modified Date May 20, 2025 6:43 AM UTC
  • Pinout / Pin List Click Here (Member Only)

LT3598IFEPBF Details

  • Manufacturer Part Number:

    LT3598IFEPBF

  • Manufacturer:

    Analog Devices Inc

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LT3598IFEPBF Overview

Use the download button to access the LT3598IFEPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT359, or try a keyword search, such as Display Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
