LT3599HFE#PBF - Analog Devices

Description: LED Lighting Drivers 45V, 2.1MHz, 4 Channel 120mA Boost Mode LED Driver

Download LT3599HFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

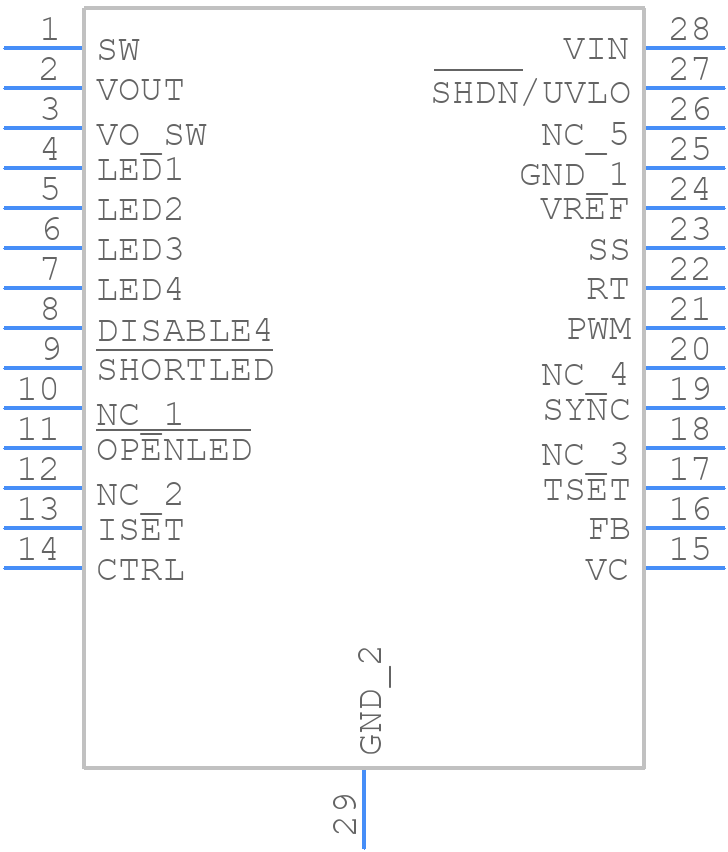

Symbol
LT3599HFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3599HFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead Plastic TSSOP (4.4mm)
click to zoom
3D Models
LT3599HFE#PBF - Analog Devices - 3D model - Small Outline Packages - 28-Lead Plastic TSSOP (4.4mm)
click to zoom

LT3599HFE#PBF Details

  • Manufacturer Part Number:

    LT3599HFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.40 MM, LEAD FREE, PLASTIC, TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1663 (EB)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    40

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    30 V

  • Supply Voltage-Min:

    3.1 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LT3599HFE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device on a solid copper plane, using thermal vias to connect the plane to the backside of the board, and keeping the area around the device clear of other components to allow for good airflow.
  • To ensure reliable start-up, make sure the input voltage rises monotonically and does not droop during start-up. Also, ensure that the input capacitor is properly sized to handle the inrush current during start-up.
  • The maximum junction temperature that the LT3599HFE#PBF can withstand is 150°C. However, it's recommended to keep the junction temperature below 125°C for reliable operation and to ensure a long lifespan.
  • Yes, the LT3599HFE#PBF is designed to withstand high-vibration environments. However, it's recommended to follow proper PCB mounting and soldering techniques to ensure the device is securely attached to the board.
  • To troubleshoot issues with the output voltage regulation, check the input voltage, output load, and feedback resistors. Ensure that the input voltage is within the recommended range, the output load is within the specified range, and the feedback resistors are properly sized and connected.
