LT3640EFETRPBF - Analog Devices

Description: High Voltage Buck Regulator: 4V to 35V Operating Range 1.3A Output Current n OVLO Protects Input to 55V n Low Voltage Synchronous Buck Regulator: 2.5V to 5.5V Input Voltage Range 1.1A Output Current n Synchronizable, Adjustable 350kHz to 2.5MHz Switching Frequency n Programmable Power-On Reset Timer n Programmable Window Mode Watchdog Timer n Typical Quiescent Current: 290µA n Short-Circuit Robust n Programmable Soft-Start n Low Shutdown Current: IQ < 1µA n Available in Thermally Enhanced 28-

Download LT3640EFETRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

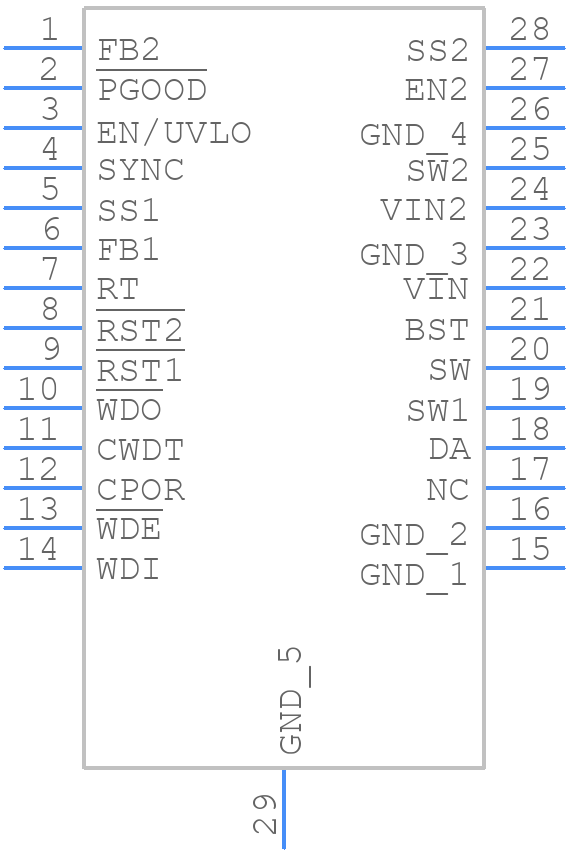

LT3640EFETRPBF - Analog Devices - PCB symbol
